Daikin FDYQN200LC-MY 20.0kW Standard Inverter 3 Phase Ducted Air Conditioner
The Daikin FDYQN200LC-MY is a high-capacity reverse cycle ducted air conditioning system designed for large residential homes, commercial tenancies and demanding whole-building comfort applications.
Combining the FDYQN200LCV1 indoor unit with the RZQ200MY1 three phase outdoor unit, this system delivers powerful concealed heating and cooling through a ducted layout while keeping indoor equipment out of sight. It is a strong option for projects needing high airflow, flexible zoning potential and reliable Daikin inverter performance.
Key Features
20.0kW class ducted reverse cycle system
Three phase outdoor unit for larger-capacity installations
Concealed indoor unit for discreet ducted air distribution
R410A refrigerant
Standard inverter technology
Suitable for large homes and light commercial applications
High airflow ducted performance
Brazed refrigerant pipe connections
Compatible with Daikin ducted control and zoning options
Designed for ceiling or roof space installation
Specifications
| Specification | Details |
|---|
| Indoor Model | FDYQN200LCV1 |
| Indoor Dimensions | 470 x 1200 x 997mm |
| Indoor Weight | 86kg |

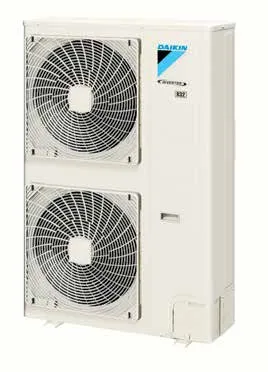

| Outdoor Model | RZQ200MY1 |
| Outdoor Dimensions | 1680 x 930 x 765mm |
| Outdoor Weight | 192kg |
| Supply Air Flange | 376 x 938mm |
| Return Air Flange | 350 x 1118mm |
| Pipe Sizes | Liquid: 9.5mm brazed / Gas: 19.1mm brazed |
| Refrigerant | R410A |
| Cooling Capacity | 20.0kW rated |
| Heating Capacity | 22.4kW rated |
| Air Flow | 1200 L/s rated |
| Drain | ID 25 / OD 32mm |
| Power Supply | 3 Phase, 415V, 50Hz |
| Max Current | Not confirmed from available source |
Applications
Large residential ducted air conditioning systems
Commercial offices and tenancies
Retail and hospitality spaces
Larger open-plan homes
Multi-zone ducted installations
Replacement ducted systems where R410A compatibility is required
Projects requiring high-capacity concealed heating and cooling
The Daikin FDYQN200LC-MY is built for serious ducted air conditioning work where capacity, reliability and installation flexibility matter. With a high-capacity indoor unit, three phase outdoor unit and proven Daikin ducted platform, it is a practical option for contractors servicing larger residential and commercial HVAC projects.
