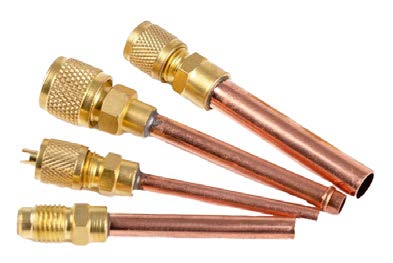

Schrader 1/4" MSAE x 1/4" Copper Tail Access Valve (5 Pack)
The Schrader 5/16" MSAE x 1/4" Copper Tail Access Valve (10 Pack) is a Schrader Access (Copper Solder) fitting designed to provide a permanent service access point on refrigeration and air conditioning systems. Featuring a 5/16" MSAE Schrader connection with a 1/4" copper tail for brazed installation, these access valves are ideal for refrigerant charging, evacuation and pressure testing.
Designed for CO₂ applications with a 60 bar pressure rating, the valves are supplied complete with valve cores and protective caps, making them suitable for professional HVAC-R installation and servicing.
Key Features
-
Schrader Access (Copper Solder)
-
1/4" MSAE Schrader service connection
-
1/4" copper tail for brazed installation
-
Rated for CO₂ systems up to 60 bar
-
Suitable for refrigerant charging, evacuation and pressure testing
-
Supplied with valve cores and protective caps
-
Suitable for professional HVAC-R installations
-
Pack quantity: 5
Specifications
| Specification | Details |
|---|
| Product Type | Schrader Access Valve (Copper Solder) |
| Service Connection | 5/16" MSAE Schrader |
| Copper Tail Size | 1/4" |
| Pressure Rating | 60 bar |
| Refrigerant Suitability | CO₂ Systems |
| Installation | Brazed copper tail |
| Pack Quantity | 5 |
Applications
-
CO₂ refrigeration systems
-
Commercial refrigeration
-
Air conditioning service ports
-
Refrigerant charging and recovery
-
System evacuation and pressure testing
-
HVAC-R maintenance and commissioning
The Schrader 5/16" MSAE x 1/4" Copper Tail Access Valve (10 Pack) provides a reliable, permanent service connection for refrigeration and air conditioning systems. Its 60 bar CO₂ rating, brazed copper tail and convenient pack size make it an excellent choice for professional HVAC-R installers and service technicians.
