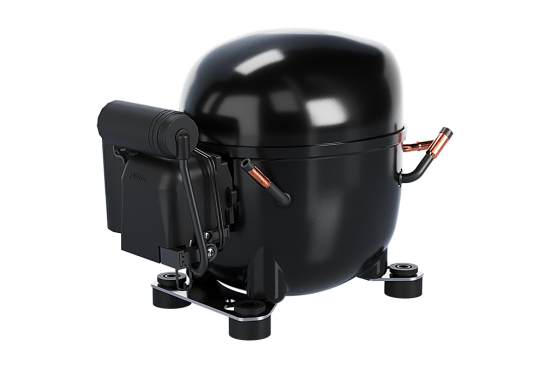

Embraco Compressor 1/4HP LBP R290 LBP 6.2cc

Category	Spec
Application	LBP (low back pressure)
Refrigerant	R290
Voltage	220–240V / 50Hz
Motor Type	RSIR
Starting Torque	Low (LST)
Displacement	6.2 cm³
HP Class	~1/4 HP
Oil Type	POE ISO22
Oil Charge	~350 ml
Weight	~10.4–10.6 kg
Height	~185–187 mm
Evap Temp Range	-40°C to -10°C
Suction Line	3/8" (9.6 mm)
Discharge Line	1/4" (6.1 mm)
Recommended Drier	Danfoss DML 032S (16g)
LRA (Start Current)	~15–16 A

Evap Temp	Capacity (W)	Input Power (W)	Current (A approx)
-30°C	213 W	~174 W	~1.45 A
-20°C	340 W	~208 W	~1.55 A
-10°C	514 W	~244 W	~1.65–1.7 A

Add to Quote

Price

Documents

nek1121u-ast-351533.pdf

Internal Reference: NEK1121U
