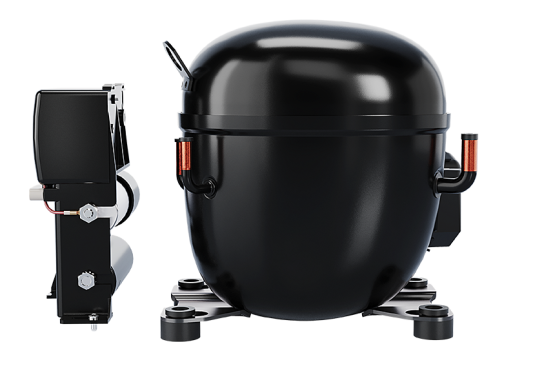

Embraco Compressor R290 1HP MBP 22.4cc

Embraco Compressor R290 1HP MBP 22.4cc



CategorySpec
ApplicationMBP (medium back pressure)
RefrigerantR290
Voltage220–240V / 50Hz
Motor TypeCSCR
Starting TorqueHigh (HST)
Displacement22.4 cm³ (Kaeltetechnikshop)
HP Class~1 HP
Oil TypePOE ISO22
Oil Charge~450 ml (Kruff)
Weight~17–17.2 kg (Kruff)
Height~220 mm (Kruff)
Evap Temp Range-20°C to +10°C (Kaeltetechnikshop)
Suction Line3/8" (9.6 mm) (Kaeltetechnikshop)
Discharge Line1/4" (6.4 mm) (Kaeltetechnikshop)
Recommended DrierDanfoss DML 052S (20g)
LRA (Start Current)~33–34 A (Embraco)
Evap TempCapacity (W)Input Power (W)Current (A approx)
-20°C~989 W~672 W~3.1 A
-10°C~1528 W~812 W~3.7–3.8 A
0°C~2260 W~950 W~4.3–4.4 A
Add to Quote
Price

Documents
NT6224U_TDS.pdf

Internal Reference: NT6224U
