SKY 306-1016 Suction Accumulator 5/8" ID
The SKY 306-1016 is a 5/8" ID suction accumulator designed to help protect compressors from liquid refrigerant floodback in refrigeration and air conditioning systems.
With a full-flow “U” tube and large surface area strainer at the oil return orifice, the 306-1016 supports controlled refrigerant and oil return while keeping pressure drop low across the suction line.
Key Features
SKY suction accumulator
5/8" ID connection
1.6L internal volume
3,600kPa safe working pressure
Full-flow “U” tube with minimal pressure drop
Large surface area strainer fitted to oil return orifice
Manufactured in accordance with ISO/AS 5149.2
Suitable for suction line compressor protection
Specifications
| Specification | Details |
|---|
| Part Number | 306-1016 |
| Brand | SKY Refrigeration |
| Product Type | Suction Accumulator |
| Series | SKY 306 Series |
| Connection Size | 5/8" ID |
| Height | 218mm |
| Diameter | 102mm |
| Volume | 1.6L |
| Weight | 1.9kg |
| Pressure Rating | 3,600kPa |

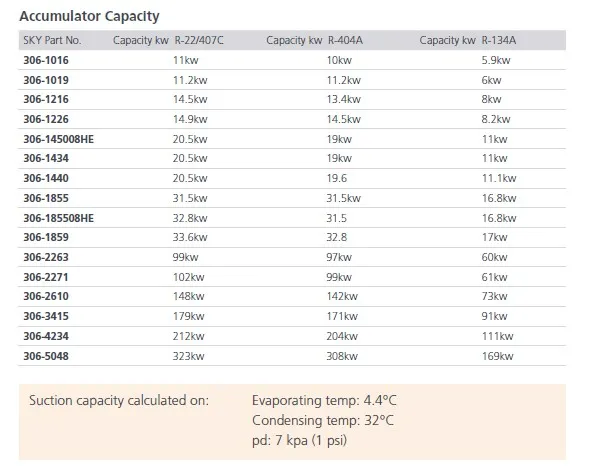

| Capacity R-22 / R-407C | 11kW |
| Capacity R-404A | 10kW |
| Capacity R-134a | 5.9kW |
| Design Feature | Full-Flow “U” Tube |
| Oil Return Feature | Large Surface Area Strainer at Oil Return Orifice |
| Manufacturing Standard | ISO/AS 5149.2 |
Applications
Compressor floodback protection
Refrigeration suction lines
Air conditioning systems
HVAC-R maintenance
Commercial refrigeration service
Liquid refrigerant control
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Suction capacity is based on catalogue conditions of 4.4°C evaporating temperature, 32°C condensing temperature and 7kPa pressure drop.
The SKY 306-1016 is a compact 5/8" suction accumulator for HVAC-R systems requiring reliable compressor protection.
