SKY 306-1019 Suction Accumulator 5/8" ID
The SKY 306-1019 is a 5/8" ID suction accumulator designed for compressor protection in refrigeration and air conditioning systems.
With a 1.9L volume and full-flow “U” tube design, the 306-1019 helps control liquid refrigerant return to the compressor while maintaining minimal pressure drop through the suction line.
Key Features
SKY suction accumulator
5/8" ID connection
1.9L internal volume
3,600kPa safe working pressure
Full-flow “U” tube with minimal pressure drop
Large surface area strainer fitted to oil return orifice
Manufactured in accordance with ISO/AS 5149.2
Suitable for HVAC-R suction line protection
Specifications
| Specification | Details |
|---|
| Part Number | 306-1019 |
| Brand | SKY Refrigeration |
| Product Type | Suction Accumulator |
| Series | SKY 306 Series |
| Connection Size | 5/8" ID |
| Height | 270mm |
| Diameter | 102mm |
| Volume | 1.9L |
| Weight | 2.7kg |
| Pressure Rating | 3,600kPa |

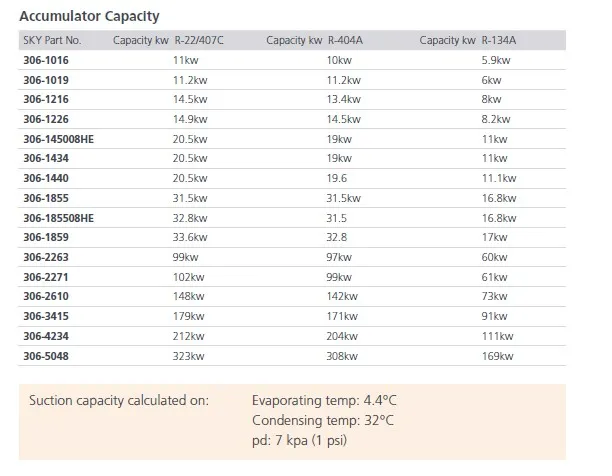

| Capacity R-22 / R-407C | 11.2kW |
| Capacity R-404A | 11.2kW |
| Capacity R-134a | 6kW |
| Design Feature | Full-Flow “U” Tube |
| Oil Return Feature | Large Surface Area Strainer at Oil Return Orifice |
| Manufacturing Standard | ISO/AS 5149.2 |
Applications
Compressor suction protection
Refrigeration systems
Air conditioning systems
Liquid refrigerant control
HVAC-R service replacement
Commercial refrigeration maintenance
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Confirm system capacity and suction line sizing before installation.
The SKY 306-1019 is a 5/8" suction accumulator for technicians needing reliable suction line protection in HVAC-R systems.
