SKY 306-1434 Suction Accumulator 7/8" ID
The SKY 306-1434 is a 7/8" ID suction accumulator designed for compressor protection in refrigeration and air conditioning systems.
With a 3.4L volume, full-flow “U” tube and oil return strainer, the 306-1434 helps manage liquid refrigerant return while supporting stable suction line performance.
Key Features
SKY suction accumulator
7/8" ID connection
3.4L internal volume
3,600kPa safe working pressure
Full-flow “U” tube with minimal pressure drop
Large surface area strainer fitted to oil return orifice
Manufactured in accordance with ISO/AS 5149.2
Suitable for medium-capacity HVAC-R systems
Specifications
| Specification | Details |
|---|
| Part Number | 306-1434 |
| Brand | SKY Refrigeration |
| Product Type | Suction Accumulator |
| Series | SKY 306 Series |
| Connection Size | 7/8" ID |
| Height | 325mm |
| Diameter | 128mm |
| Volume | 3.4L |
| Weight | 3.5kg |
| Pressure Rating | 3,600kPa |

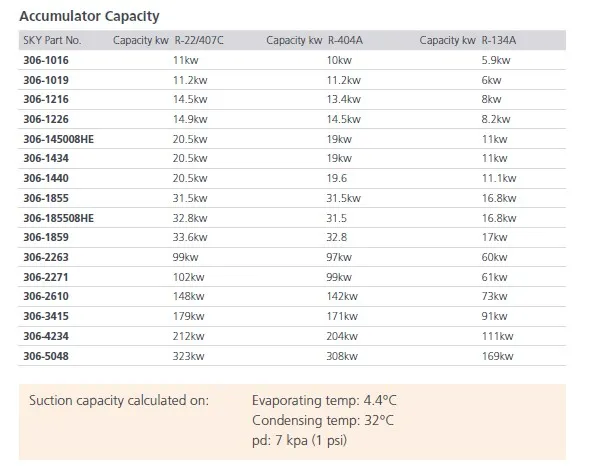

| Capacity R-22 / R-407C | 20.5kW |
| Capacity R-404A | 19kW |
| Capacity R-134a | 11kW |
| Design Feature | Full-Flow “U” Tube |
| Oil Return Feature | Large Surface Area Strainer at Oil Return Orifice |
| Manufacturing Standard | ISO/AS 5149.2 |
Applications
Compressor suction line protection
Commercial refrigeration systems
Air conditioning systems
Liquid refrigerant control
HVAC-R service and replacement work
Medium-capacity refrigeration applications
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Check system capacity, refrigerant and suction line sizing before installation.
The SKY 306-1434 is a 7/8" suction accumulator for medium HVAC-R systems requiring dependable compressor protection.
