SKY 306-5048 Suction Accumulator 3-1/8" ID
The SKY 306-5048 is a 3-1/8" ID suction accumulator designed for large commercial and industrial HVAC-R systems.
With a 48L volume and high catalogue suction capacity, the 306-5048 helps protect compressors from liquid refrigerant return in large refrigeration systems. Its full-flow “U” tube design supports minimal pressure drop through the suction line.
Key Features
SKY suction accumulator
3-1/8" ID connection
48L internal volume
3,600kPa safe working pressure
Full-flow “U” tube with minimal pressure drop
Large surface area strainer fitted to oil return orifice
Manufactured in accordance with ISO/AS 5149.2
Suitable for large commercial and industrial HVAC-R systems
High-capacity suction line protection
Specifications
| Specification | Details |
|---|
| Part Number | 306-5048 |
| Brand | SKY Refrigeration |
| Product Type | Suction Accumulator |
| Series | SKY 306 Series |
| Connection Size | 3-1/8" ID |
| Height | 767mm |
| Diameter | 325mm |
| Volume | 48L |
| Weight | 14.1kg |
| Pressure Rating | 3,600kPa |

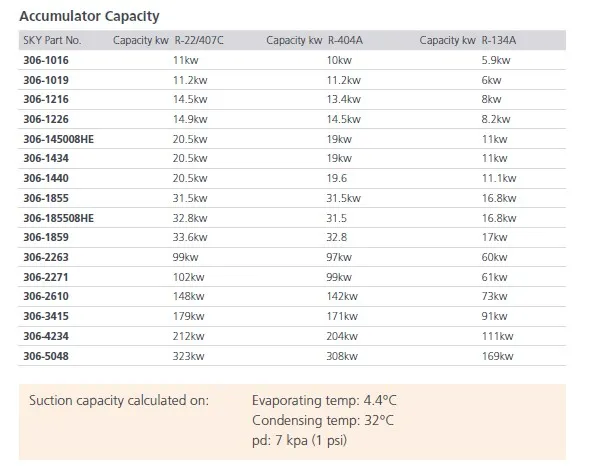

| Capacity R-22 / R-407C | 323kW |
| Capacity R-404A | 308kW |
| Capacity R-134a | 169kW |
| Design Feature | Full-Flow “U” Tube |
| Oil Return Feature | Large Surface Area Strainer at Oil Return Orifice |
| Manufacturing Standard | ISO/AS 5149.2 |
Applications
Large commercial refrigeration systems
Industrial HVAC-R systems
High-capacity suction line protection
Compressor floodback protection
Liquid refrigerant management
Refrigeration plant maintenance
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Confirm mounting requirements, refrigerant compatibility, suction line size and system capacity before installation.
The SKY 306-5048 is a high-capacity 3-1/8" suction accumulator for large HVAC-R systems requiring strong compressor protection and low pressure drop.
