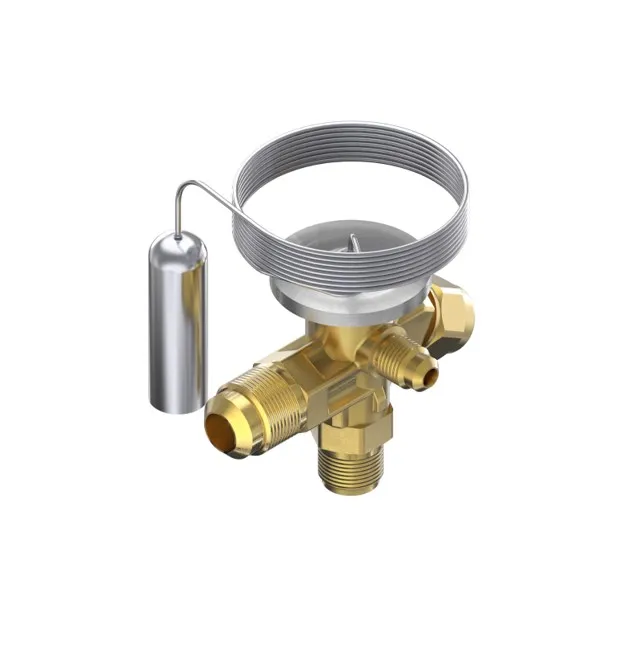

Danfoss 068Z3348 TE 2 Thermostatic Expansion Valve – R134a / R513A
The Danfoss 068Z3348 is a TE 2 thermostatic expansion valve for R134a / R513A refrigeration systems. It is externally equalised and designed for temperature control across a range of medium-temperature refrigeration applications.
Key Features
Danfoss TE 2 thermostatic expansion valve
Suitable for R134a / R513A
Externally equalised
Temperature range from -40°C to 10°C
1500mm capillary tube length
Angleway valve direction
Brass body material
3/8 inch flare inlet connection
1/4 inch flare equalisation connection
Bi-flow with orifice 01–05, as listed by Danfoss
Adjustable superheat setting
Specifications
| Specification | Details |
|---|
| Product Code | 068Z3348 |
| Brand | Danfoss |
| Product Type | Thermostatic Expansion Valve |
| Type | TE 2 |
| Product Group | Expansion Valves |
| Refrigerant | R134a / R513A |
| Pressure Equalisation | Externally equalised |
| Temperature Range | -40°C to 10°C |
| Capillary Tube Length | 1500mm |
| Direction | Angleway |
| Flow Direction | Bi-flow with orifice 01–05 |
| Inlet Connection Type | Flare |
| Inlet Size | 3/8 inch |
| Equalisation Connection Type | Flare |
| Equalisation Size | 1/4 inch |
| Body Material | Brass |
| EAN | 5702422124443 |
| Net Weight | 0.292kg |
| Gross Weight | 0.316kg |
Applications
Commercial refrigeration systems
R134a / R513A refrigeration circuits
Medium-temperature evaporator control
HVAC-R service replacement
Cool room refrigeration applications
Safety & Documentation
Install only by licensed refrigeration technicians. Confirm refrigerant, equalisation method, orifice selection, superheat setting and operating conditions against Danfoss technical documentation before installation.
The Danfoss 068Z3348 is an externally equalised TE 2 valve for R134a / R513A refrigeration systems requiring accurate evaporator refrigerant control.
