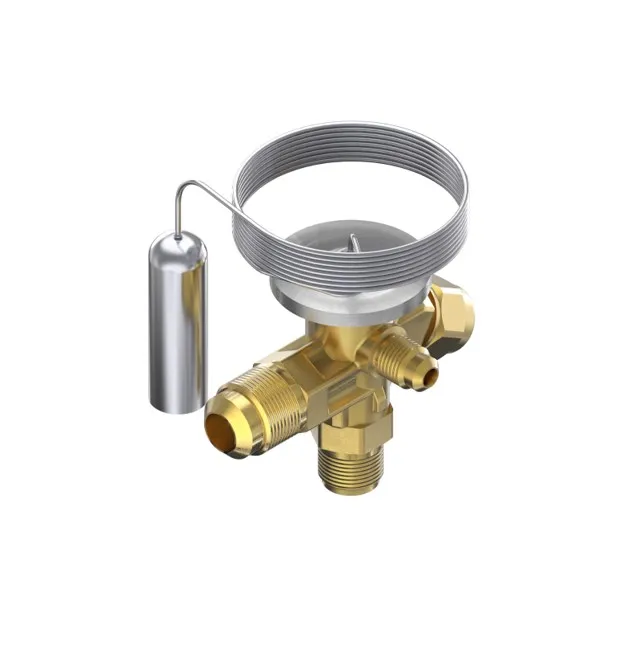

Danfoss 068Z3385 TE 2 Thermostatic Expansion Valve – R134a / R513A
The Danfoss 068Z3385 is a TE 2 thermostatic expansion valve for R134a / R513A refrigeration systems. It is externally equalised and designed for commercial refrigeration evaporator control across a temperature range from -40°C to 10°C.
Key Features
Danfoss TE 2 thermostatic expansion valve
Suitable for R134a / R513A
Externally equalised
Temperature range from -40°C to 10°C
1500mm capillary tube length
Angleway valve direction
Brass and copper connection materials listed
3/8 inch flare inlet connection
1/4 inch solder equalisation connection
Bi-flow with orifice 01–05, as listed by Danfoss
Adjustable superheat setting
Specifications
| Specification | Details |
|---|
| Product Code | 068Z3385 |
| Brand | Danfoss |
| Product Type | Thermostatic Expansion Valve |
| Type | TE 2 |
| Product Group | Expansion Valves |
| Refrigerant | R134a / R513A |
| Pressure Equalisation | Externally equalised |
| Temperature Range | -40°C to 10°C |
| Capillary Tube Length | 1500mm |
| Direction | Angleway |
| Flow Direction | Bi-flow with orifice 01–05 |
| Inlet Connection Type | Flare |
| Inlet Size | 3/8 inch |
| Equalisation Connection Type | Solder |
| Equalisation Size | 1/4 inch |
| Body Material | Brass |
| Connection Material | Brass / Copper |
| EAN | 5702422124504 |
| Net Weight | 0.28kg |
| Gross Weight | 0.302kg |
Applications
Commercial refrigeration systems
R134a / R513A refrigerant circuits
Externally equalised evaporator applications
Cool room refrigeration systems
HVAC-R service replacement
Safety & Documentation
Install only by licensed refrigeration technicians. Confirm refrigerant compatibility, external equalisation requirements, orifice selection, superheat setting and system operating conditions against Danfoss technical documentation before installation.
The Danfoss 068Z3385 is an externally equalised TE 2 valve for R134a / R513A refrigeration applications requiring reliable evaporator refrigerant control.
