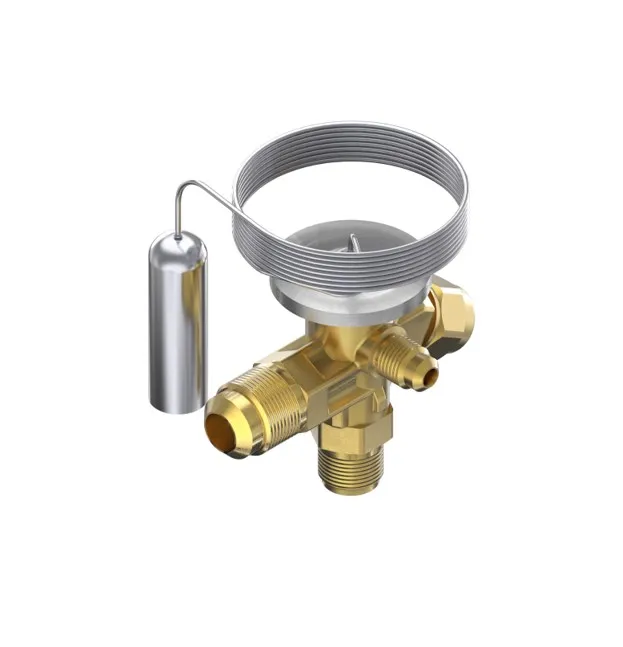

Danfoss 068Z3400 T 2 Thermostatic Expansion Valve – R404A / R507A
The Danfoss 068Z3400 is a T 2 thermostatic expansion valve for R404A / R507A refrigeration systems. It is internally equalised and listed with a -40°C to 10°C temperature range for evaporator refrigerant control.
Key Features
Danfoss T 2 thermostatic expansion valve
Suitable for R404A / R507A
Internally equalised
Temperature range from -40°C to 10°C
1500mm capillary tube length
Angleway valve direction
Brass body material
3/8 inch flare inlet connection
Single-flow design
Adjustable superheat setting
Specifications
| Specification | Details |
|---|
| Product Code | 068Z3400 |
| Brand | Danfoss |
| Product Type | Thermostatic Expansion Valve |
| Type | T 2 |
| Product Group | Expansion Valves |
| Refrigerant | R404A / R507A |
| Pressure Equalisation | Internally equalised |
| Temperature Range | -40°C to 10°C |
| Capillary Tube Length | 1500mm |
| Direction | Angleway |
| Flow Direction | Single-flow |
| Inlet Connection Type | Flare |
| Inlet Size | 3/8 inch |
| Body Material | Brass |
| EAN | 5702422125280 |
| Net Weight | 0.284kg |
| Gross Weight | 0.306kg |
Applications
Commercial refrigeration systems
R404A / R507A refrigeration circuits
Internally equalised evaporator control
Cool room and freezer room systems
HVAC-R service replacement
Safety & Documentation
Install only by licensed refrigeration technicians. Confirm refrigerant compatibility, orifice selection, internal equalisation suitability, superheat setting and operating conditions against Danfoss technical documentation before installation.
The Danfoss 068Z3400 is an internally equalised T 2 valve for R404A / R507A refrigeration applications.
