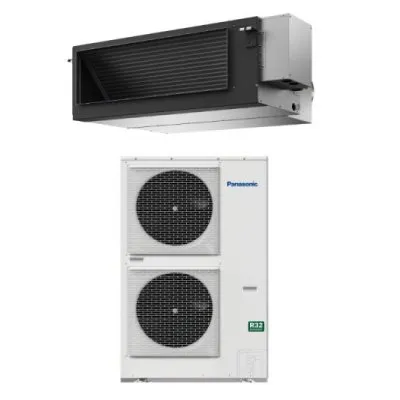

Panasonic 16.0kW R32 High Static Ducted System – 160PE53H4-KIT
The Panasonic 160PE53H4-KIT is a 16.0kW single-phase high static pressure ducted air conditioning system from Panasonic’s R32 NX Series. The new splittable indoor chassis is designed to simplify access and installation in restricted ceiling spaces while providing high airflow and up to 150 Pa external static pressure.
The system incorporates Panasonic nanoe™ X Generator Mark 3 air purification technology and inverter control for efficient reverse-cycle heating and cooling.
System Components
| Component | Model |
|---|
| Indoor Unit | S-160PE4R |
| Outdoor Unit | U-160PZH3R5 |
Technical Specifications
| Specification | Details |
|---|
| Indoor Model | S-160PE4R |
| Indoor Dimensions (H × W × D) | 400 × 1297 × 949 mm |
| Indoor Weight | 61 kg |
| Outdoor Model | U-160PZH3R5 |
| Outdoor Dimensions (H × W × D) | 1500 × 980 × 370 mm |
| Outdoor Weight | 117 kg |
| Supply Air Flange | Approx. 289 × 948 mm rectangular flange |
| Return Air Flange | 2 × Ø400 mm round connections |
| Pipe Sizes | 9.52 mm (3/8") Liquid / 19.05 mm (3/4") Gas |
| Refrigerant | R32 |
| Cooling Capacity | 16.0 kW nominal – 5.4 to 18.0 kW |
| Heating Capacity | 18.0 kW nominal – 5.5 to 20.0 kW |
| Air Flow – High / Medium / Low | 1000 / 833 / 700 L/s |
| External Static Pressure | 80 Pa nominal – adjustable 50 to 150 Pa |
| Drain | VP25 |
| Power Supply | 220–240 V / 1 Phase / 50 Hz |
| Maximum Current | 29.0 A |
| Maximum Input Power | 6.54 kW |
| Maximum Pipe Length | 100 m |
| Pre-charged Pipe Length | 30 m |
| Additional Refrigerant | 45 g/m over 30 m |
| Maximum Elevation Difference | 30 m |
Key Features
High static pressure ducted design
Splittable indoor chassis for easier roof-space installation
nanoe™ X Generator Mark 3
R32 inverter technology
High airflow up to 1000 L/s
External static pressure adjustable up to 150 Pa
Two factory Ø400 mm return-air connections
DC indoor fan motor
Automatic fan operation
Dry mode
Automatic restart
Self-diagnosis functions
Extended refrigerant pipe runs up to 100 m
Controller Options
Controller is not included with the system unless specifically selected or supplied as part of the quote.
Compatible Panasonic wired, CONEX, Wi-Fi and zoning control options are available separately.
Manufacturer: Panasonic
Kit: 160PE53H4-KIT
Indoor: S-160PE4R
Outdoor: U-160PZH3R5
