SKY 302-1801 Accessible Filter & Drier Shell 1 Core 1-1/8" SOL
The SKY 302-1801 is a 1 core accessible filter and drier shell designed for serviceable filtration and moisture control in HVAC-R systems.
With a 1-1/8" solder connection, replaceable core design and solid copper connections, the 302-1801 is suited to commercial refrigeration systems where ongoing service access is required.
Key Features
SKY accessible filter and drier shell
1 core shell design
1-1/8" SOL solder connection
4,380kPa safe working pressure
48 & 60 Bar CO₂ available on request
Double plated steel end plate
Stainless steel bolts
Anti-corrosion powder coat finish
Solid copper connections
Large secondary mesh filter
Designed for minimal pressure drop
Manufactured in accordance with ISO/AS 5149.2
Specifications
| Specification | Details |
|---|
| Part Number | 302-1801 |
| Brand | SKY Refrigeration |
| Product Type | Accessible Filter & Drier Shell |
| Series | SKY 302 Series |
| Core Capacity | 1 Core |
| Connection Type | Solder |
| Connection Size | 1-1/8" SOL |
| Lay-in A | 140mm |
| Length B | 240mm |
| Pressure Rating | 4,380kPa |

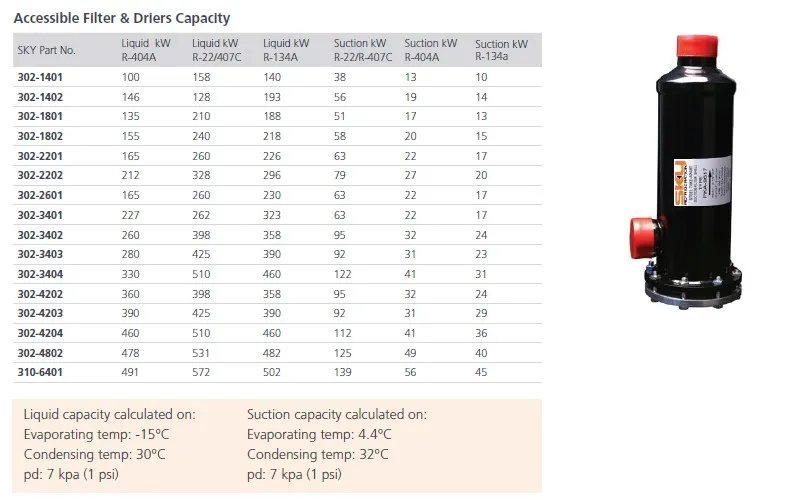

| Liquid Capacity R-404A | 135kW |
| Liquid Capacity R-22 / R-407C | 210kW |
| Liquid Capacity R-134a | 188kW |
| Suction Capacity R-22 / R-407C | 51kW |
| Suction Capacity R-404A | 17kW |
| Suction Capacity R-134a | 13kW |
| Finish | Anti-Corrosion Powder Coat |
| Connection Material | Solid Copper Connections |
| Manufacturing Standard | ISO/AS 5149.2 |
| Recommended Category | Refrigeration > Refrigeration Components > Filter Driers > Replaceable Core Drier Shells |
Applications
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Confirm the correct core type, system pressure rating and refrigerant compatibility before installation.
The SKY 302-1801 is a 1 core accessible drier shell for trade HVAC-R systems requiring serviceable filtration and contaminant control.
