SKY 302-1402 Accessible Filter & Drier Shell 2 Core 7/8" SOL
The SKY 302-1402 is a 2 core accessible filter and drier shell for refrigeration systems requiring serviceable moisture and contaminant control.
Its accessible shell design allows replacement drier cores to be installed during maintenance, while the double plated steel end plate, stainless steel bolts and powder coated body support long service life in commercial HVAC-R applications.
Key Features
SKY accessible filter and drier shell
2 core shell design
7/8" SOL solder connection
4,380kPa safe working pressure
48 & 60 Bar CO₂ available on request
Double plated steel end plate
Stainless steel bolts
Anti-corrosion powder coat finish
Solid copper connections
Large secondary mesh filter
Minimal pressure drop design
Manufactured in accordance with ISO/AS 5149.2
Specifications
| Specification | Details |
|---|
| Part Number | 302-1402 |
| Brand | SKY Refrigeration |
| Product Type | Accessible Filter & Drier Shell |
| Series | SKY 302 Series |
| Core Capacity | 2 Core |
| Connection Type | Solder |
| Connection Size | 7/8" SOL |

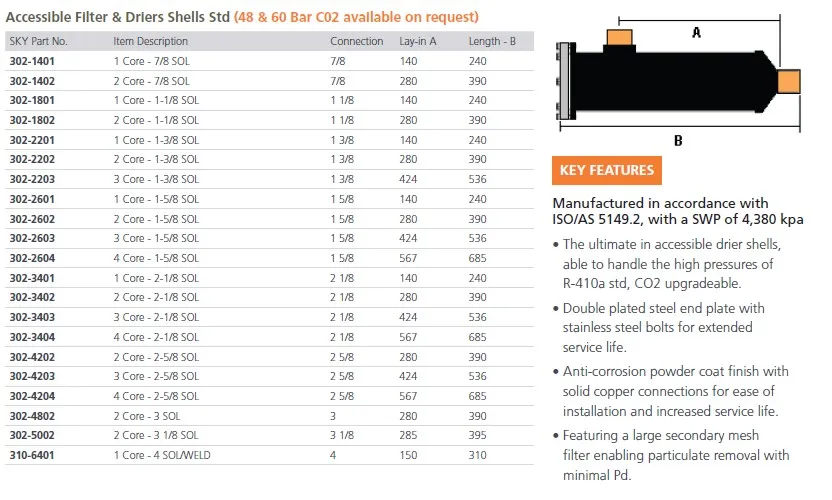

| Lay-in A | 280mm |
| Length B | 390mm |
| Pressure Rating | 4,380kPa |

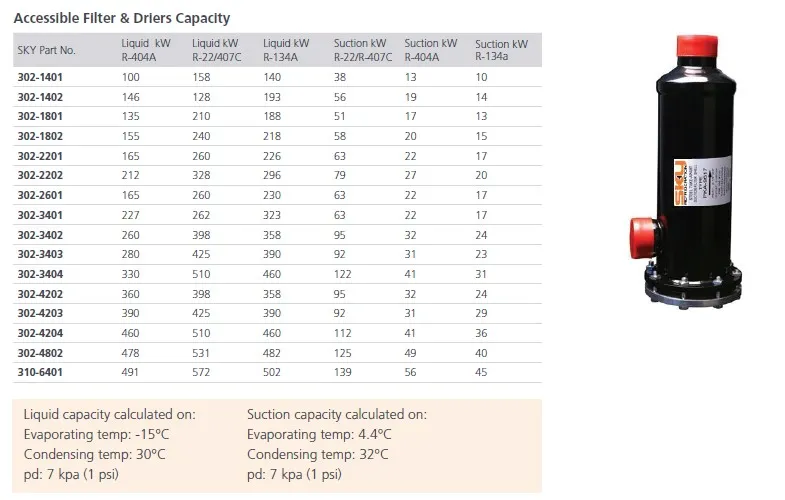

| Liquid Capacity R-404A | 146kW |
| Liquid Capacity R-22 / R-407C | 128kW |
| Liquid Capacity R-134a | 193kW |
| Suction Capacity R-22 / R-407C | 56kW |
| Suction Capacity R-404A | 19kW |
| Suction Capacity R-134a | 14kW |
| Finish | Anti-Corrosion Powder Coat |
| Connection Material | Solid Copper Connections |
| Manufacturing Standard | ISO/AS 5149.2 |
| Recommended Category | Refrigeration > Refrigeration Components > Filter Driers > Replaceable Core Drier Shells |
Applications
Commercial refrigeration systems
Replaceable core filter drier installations
Liquid line and suction line filtration
Moisture and acid control
Refrigerant circuit clean-up
HVAC-R maintenance and service work
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Confirm replacement core selection, pressure rating and refrigerant compatibility before use. Follow current SKY documentation and equipment manufacturer requirements.
The SKY 302-1402 is a 2 core accessible drier shell for larger serviceable refrigeration filter drier applications.
