SKY 302-2202 Accessible Filter & Drier Shell 2 Core 1-3/8" SOL
The SKY 302-2202 is a 2 core accessible filter and drier shell for commercial refrigeration systems requiring higher serviceable drier capacity.
Built for replaceable core operation, it allows technicians to service the drier core assembly while retaining the shell, making it practical for larger HVAC-R plant maintenance.
Key Features
SKY accessible filter and drier shell
2 core shell design
1-3/8" SOL solder connection
4,380kPa safe working pressure
48 & 60 Bar CO₂ available on request
Double plated steel end plate
Stainless steel bolts
Anti-corrosion powder coat finish
Solid copper connections
Large secondary mesh filter
Minimal pressure drop design
Manufactured in accordance with ISO/AS 5149.2
Specifications
| Specification | Details |
|---|
| Part Number | 302-2202 |
| Brand | SKY Refrigeration |
| Product Type | Accessible Filter & Drier Shell |
| Series | SKY 302 Series |
| Core Capacity | 2 Core |
| Connection Type | Solder |
| Connection Size | 1-3/8" SOL |

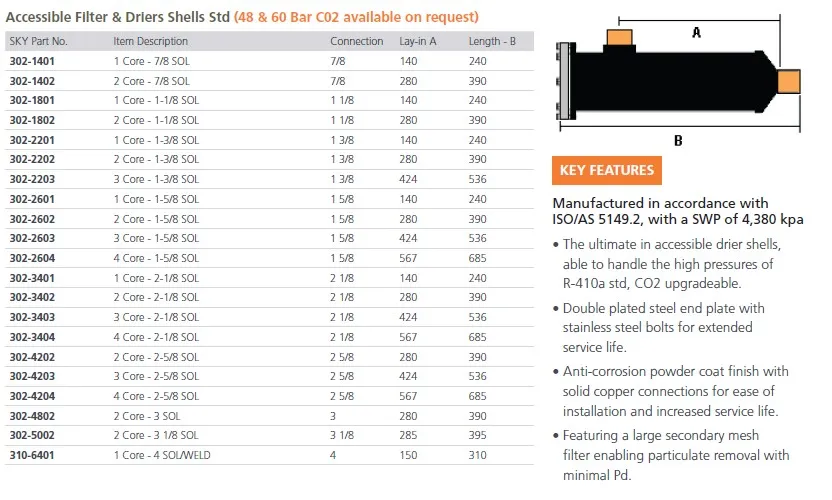

| Lay-in A | 280mm |
| Length B | 390mm |
| Pressure Rating | 4,380kPa |

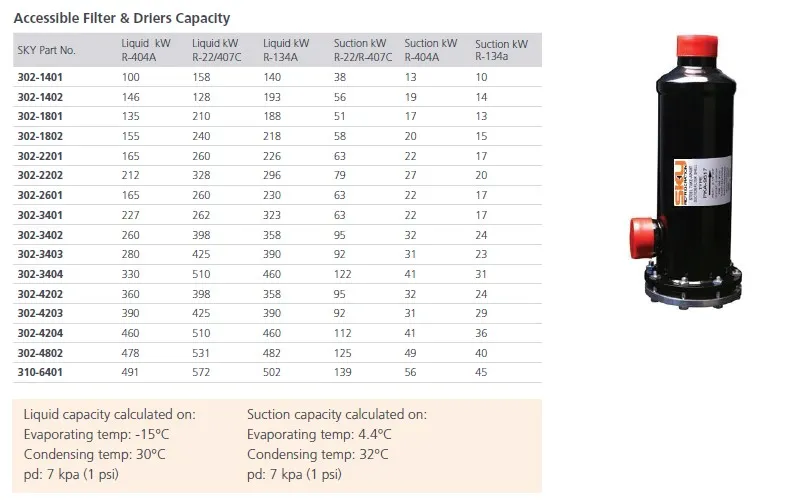

| Liquid Capacity R-404A | 212kW |
| Liquid Capacity R-22 / R-407C | 328kW |
| Liquid Capacity R-134a | 296kW |
| Suction Capacity R-22 / R-407C | 79kW |
| Suction Capacity R-404A | 27kW |
| Suction Capacity R-134a | 20kW |
| Finish | Anti-Corrosion Powder Coat |
| Connection Material | Solid Copper Connections |
| Manufacturing Standard | ISO/AS 5149.2 |
| Recommended Category | Refrigeration > Refrigeration Components > Filter Driers > Replaceable Core Drier Shells |
Applications
Larger commercial refrigeration systems
Liquid line filtration
Suction line filtration
Replaceable core drier maintenance
Moisture and acid removal
HVAC-R system clean-up
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Use compatible replacement cores and confirm system pressure, refrigerant and application requirements before installation.
The SKY 302-2202 is a 2 core accessible drier shell for larger serviceable HVAC-R filtration applications.
