SKY 302-3402 Accessible Filter & Drier Shell 2 Core 2-1/8" SOL
The SKY 302-3402 is a 2 core accessible filter and drier shell for larger commercial refrigeration and HVAC-R systems.
Its replaceable core design allows service access for ongoing moisture, acid and particle control, while the solid copper solder connections support reliable brazed installation.
Key Features
SKY accessible filter and drier shell
2 core shell design
2-1/8" SOL solder connection
4,380kPa safe working pressure
48 & 60 Bar CO₂ available on request
Double plated steel end plate
Stainless steel bolts
Anti-corrosion powder coat finish
Solid copper connections
Large secondary mesh filter
Designed for minimal pressure drop
Manufactured in accordance with ISO/AS 5149.2
Specifications
| Specification | Details |
|---|
| Part Number | 302-3402 |
| Brand | SKY Refrigeration |
| Product Type | Accessible Filter & Drier Shell |
| Series | SKY 302 Series |
| Core Capacity | 2 Core |
| Connection Type | Solder |
| Connection Size | 2-1/8" SOL |

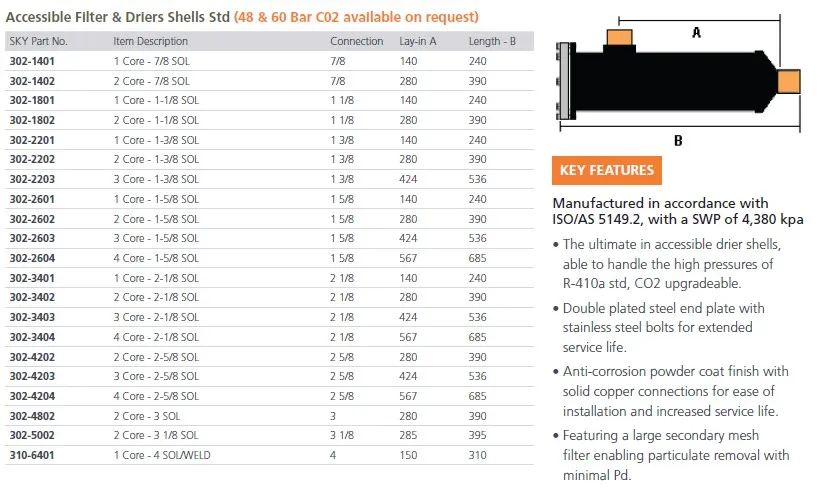

| Lay-in A | 280mm |
| Length B | 390mm |
| Pressure Rating | 4,380kPa |

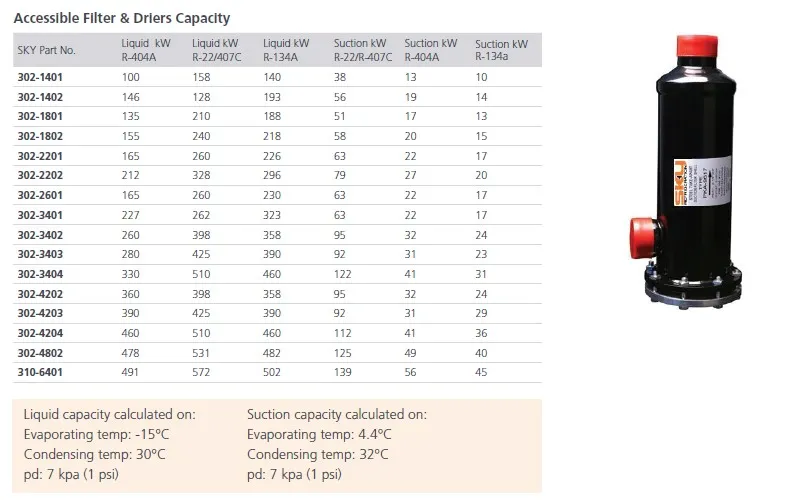

| Liquid Capacity R-404A | 260kW |
| Liquid Capacity R-22 / R-407C | 398kW |
| Liquid Capacity R-134a | 358kW |
| Suction Capacity R-22 / R-407C | 95kW |
| Suction Capacity R-404A | 32kW |
| Suction Capacity R-134a | 24kW |
| Finish | Anti-Corrosion Powder Coat |
| Connection Material | Solid Copper Connections |
| Manufacturing Standard | ISO/AS 5149.2 |
| Recommended Category | Refrigeration > Refrigeration Components > Filter Driers > Replaceable Core Drier Shells |
Applications
Larger commercial refrigeration systems
Replaceable core drier installations
Liquid line filtration
Suction line filtration
Moisture and acid removal
HVAC-R service and maintenance
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Confirm refrigerant, pressure rating and replacement core compatibility before fitting.
The SKY 302-3402 is a 2 core accessible drier shell for larger HVAC-R systems requiring serviceable filtration.
