SKY 302-4202 Accessible Filter & Drier Shell 2 Core 2-5/8" SOL
The SKY 302-4202 is a 2 core accessible filter and drier shell for larger commercial refrigeration systems using 2-5/8" solder pipework.
Its accessible design supports replaceable core servicing, helping maintain moisture, acid and particle control across larger HVAC-R systems.
Key Features
SKY accessible filter and drier shell
2 core shell design
2-5/8" SOL solder connection
4,380kPa safe working pressure
48 & 60 Bar CO₂ available on request
Double plated steel end plate
Stainless steel bolts
Anti-corrosion powder coat finish
Solid copper connections
Large secondary mesh filter
Minimal pressure drop design
Manufactured in accordance with ISO/AS 5149.2
Specifications
| Specification | Details |
|---|
| Part Number | 302-4202 |
| Brand | SKY Refrigeration |
| Product Type | Accessible Filter & Drier Shell |
| Series | SKY 302 Series |
| Core Capacity | 2 Core |
| Connection Type | Solder |
| Connection Size | 2-5/8" SOL |

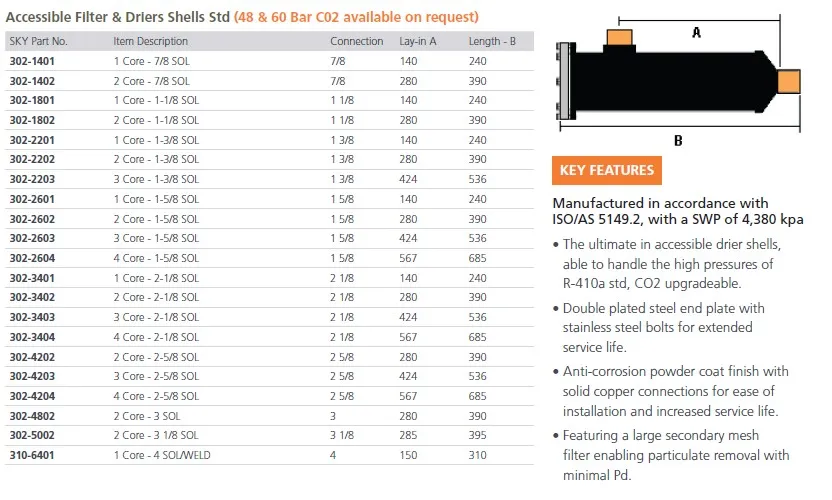

| Lay-in A | 280mm |
| Length B | 390mm |
| Pressure Rating | 4,380kPa |

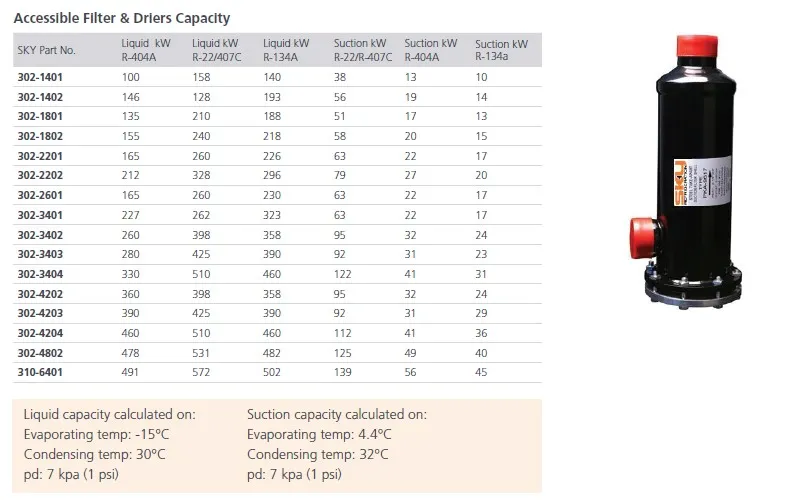

| Liquid Capacity R-404A | 360kW |
| Liquid Capacity R-22 / R-407C | 398kW |
| Liquid Capacity R-134a | 358kW |
| Suction Capacity R-22 / R-407C | 95kW |
| Suction Capacity R-404A | 32kW |
| Suction Capacity R-134a | 24kW |
| Finish | Anti-Corrosion Powder Coat |
| Connection Material | Solid Copper Connections |
| Manufacturing Standard | ISO/AS 5149.2 |
| Recommended Category | Refrigeration > Refrigeration Components > Filter Driers > Replaceable Core Drier Shells |
Applications
Larger commercial refrigeration systems
Replaceable core drier installations
Liquid line filtration
Suction line filtration
Moisture and acid control
HVAC-R plant maintenance
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Confirm pressure rating, core compatibility and refrigerant suitability before installation.
The SKY 302-4202 is a 2 core accessible drier shell for larger HVAC-R systems requiring serviceable filtration.
