SKY 302-4203 Accessible Filter & Drier Shell 3 Core 2-5/8" SOL
The SKY 302-4203 is a 3 core accessible filter and drier shell designed for larger commercial refrigeration and HVAC-R systems.
With 2-5/8" solder connections and a replaceable core design, it provides serviceable moisture, acid and particle control for large refrigeration systems.
Key Features
SKY accessible filter and drier shell
3 core shell design
2-5/8" SOL solder connection
4,380kPa safe working pressure
48 & 60 Bar CO₂ available on request
Double plated steel end plate
Stainless steel bolts
Anti-corrosion powder coat finish
Solid copper connections
Large secondary mesh filter
Minimal pressure drop design
Manufactured in accordance with ISO/AS 5149.2
Specifications
| Specification | Details |
|---|
| Part Number | 302-4203 |
| Brand | SKY Refrigeration |
| Product Type | Accessible Filter & Drier Shell |
| Series | SKY 302 Series |
| Core Capacity | 3 Core |
| Connection Type | Solder |
| Connection Size | 2-5/8" SOL |

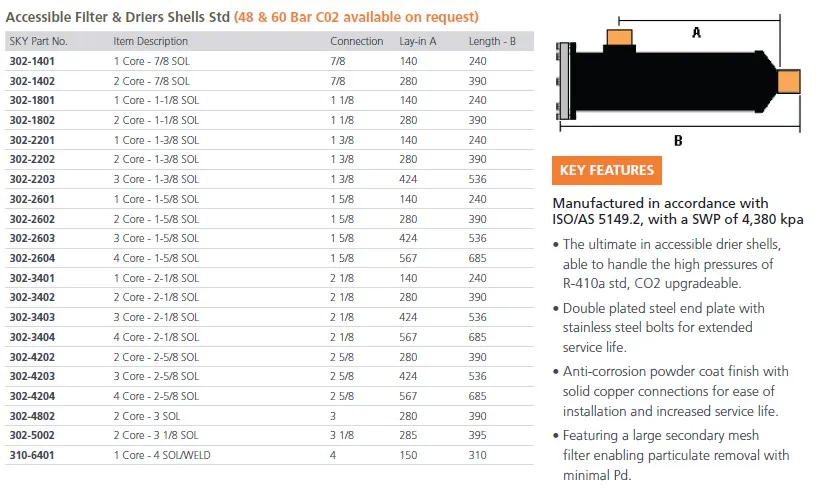

| Lay-in A | 424mm |
| Length B | 536mm |
| Pressure Rating | 4,380kPa |

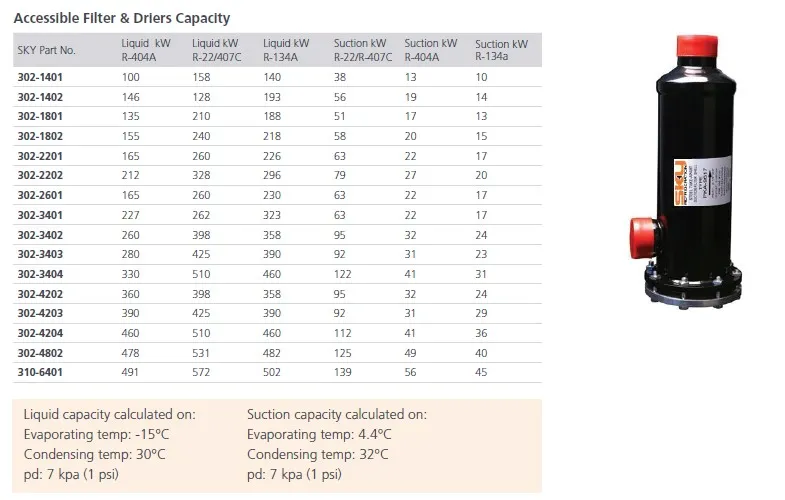

| Liquid Capacity R-404A | 390kW |
| Liquid Capacity R-22 / R-407C | 425kW |
| Liquid Capacity R-134a | 390kW |
| Suction Capacity R-22 / R-407C | 92kW |
| Suction Capacity R-404A | 31kW |
| Suction Capacity R-134a | 29kW |
| Finish | Anti-Corrosion Powder Coat |
| Connection Material | Solid Copper Connections |
| Manufacturing Standard | ISO/AS 5149.2 |
| Recommended Category | Refrigeration > Refrigeration Components > Filter Driers > Replaceable Core Drier Shells |
Applications
Large commercial refrigeration systems
Replaceable core drier maintenance
Liquid line and suction line filtration
Moisture removal
Acid and particle control
HVAC-R plant service
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Confirm core type, system pressure and refrigerant compatibility before use.
The SKY 302-4203 is a 3 core accessible drier shell for large refrigeration systems requiring serviceable contaminant control.
