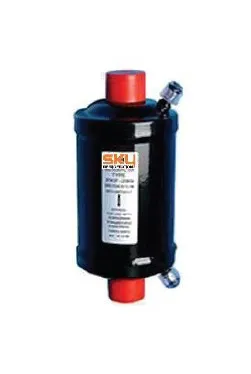

SKY 303-305 Burnout Clean-up Filter Drier 5/8" MSAE Dual Access
The SKY 303-305 is a 5/8" flare burnout clean-up filter drier with a longer 259mm lay-in length for contaminated refrigeration systems.
Built for post-burnout service, it combines acid, wax and moisture take-up with particle filtration to help clean and protect the refrigerant circuit.
Key Features
SKY burnout clean-up filter drier
5/8" MSAE flare connection
Dual access ports
3,200kPa safe working pressure
Solid core block of 60% MS / 35% AL / 5% AC
Designed for acid, wax and moisture take-up
Membrane filter element for particle retention
Anti-corrosion powder coat finish
Chrome flare connections
Manufactured in accordance with ISO/AS 5149.2
Specifications
| Specification | Details |
|---|
| Part Number | 303-305 |
| Brand | SKY Refrigeration |
| Product Type | Burnout Clean-up Filter Drier |
| Series | SKY 303 Series |
| Connection Type | Flare |
| Connection Size | 5/8" MSAE - Dual Access |
| Lay-in Length | 259mm |
| Diameter | 78mm |
| Pressure Rating | 3,200kPa |
| Capacity R-22 / R-410A | 18kW |
| Capacity R-404A | 15kW |
| Capacity R-134a | 12.5kW |
| Core Type | Solid Core |
| Core Composition | 60% Molecular Sieve / 35% Activated Alumina / 5% Activated Carbon |
| Filter Element | Membrane Filter Element |
| Finish | Anti-Corrosion Powder Coat |
| Connection Finish | Chrome Flare Connections |
| Manufacturing Standard | ISO/AS 5149.2 |
| Recommended Category | Refrigeration > Refrigeration Components > Filter Driers > Burnout Filter Driers |
Applications
Compressor burnout clean-up
Acid and wax removal
Moisture removal
Refrigeration system decontamination
Particle filtration
HVAC-R service and replacement work
The SKY 303-305 is a longer-body 5/8" flare burnout clean-up filter drier for technicians servicing contaminated refrigeration systems.
