SKY 306-1226 Suction Accumulator 3/4" ID
The SKY 306-1226 is a 3/4" ID suction accumulator with a 2.6L volume for refrigeration and air conditioning compressor protection.
Designed for suction line installation, the 306-1226 helps manage liquid refrigerant return while maintaining low pressure drop through its full-flow “U” tube design.
Key Features
SKY suction accumulator
3/4" ID connection
2.6L internal volume
3,600kPa safe working pressure
Full-flow “U” tube with minimal pressure drop
Large surface area strainer fitted to oil return orifice
Manufactured in accordance with ISO/AS 5149.2
Suitable for HVAC-R suction line applications
Specifications
| Specification | Details |
|---|
| Part Number | 306-1226 |
| Brand | SKY Refrigeration |
| Product Type | Suction Accumulator |
| Series | SKY 306 Series |
| Connection Size | 3/4" ID |
| Height | 255mm |
| Diameter | 128mm |
| Volume | 2.6L |
| Weight | 3.2kg |
| Pressure Rating | 3,600kPa |

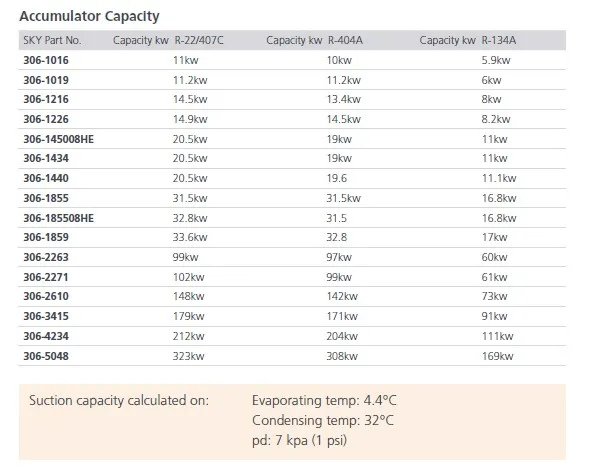

| Capacity R-22 / R-407C | 14.9kW |
| Capacity R-404A | 14.5kW |
| Capacity R-134a | 8.2kW |
| Design Feature | Full-Flow “U” Tube |
| Oil Return Feature | Large Surface Area Strainer at Oil Return Orifice |
| Manufacturing Standard | ISO/AS 5149.2 |
Applications
Compressor floodback protection
Refrigeration suction lines
Air conditioning systems
HVAC-R maintenance
Commercial refrigeration service
Liquid refrigerant management
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Confirm suction accumulator sizing against system duty and refrigerant type.
The SKY 306-1226 is a 3/4" suction accumulator for technicians needing reliable compressor protection in medium HVAC-R systems.
