SKY 306-2263 Suction Accumulator 1-3/8" ID
The SKY 306-2263 is a 1-3/8" ID suction accumulator for larger refrigeration and air conditioning systems.
With a 6.3L internal volume and a full-flow “U” tube, the 306-2263 supports compressor protection while maintaining low pressure drop across the suction line.
Key Features
SKY suction accumulator
1-3/8" ID connection
6.3L internal volume
3,600kPa safe working pressure
Full-flow “U” tube with minimal pressure drop
Large surface area strainer fitted to oil return orifice
Manufactured in accordance with ISO/AS 5149.2
Suitable for larger commercial HVAC-R applications
Specifications
| Specification | Details |
|---|
| Part Number | 306-2263 |
| Brand | SKY Refrigeration |
| Product Type | Suction Accumulator |
| Series | SKY 306 Series |
| Connection Size | 1-3/8" ID |
| Height | 350mm |
| Diameter | 160mm |
| Volume | 6.3L |
| Weight | 6.9kg |
| Pressure Rating | 3,600kPa |

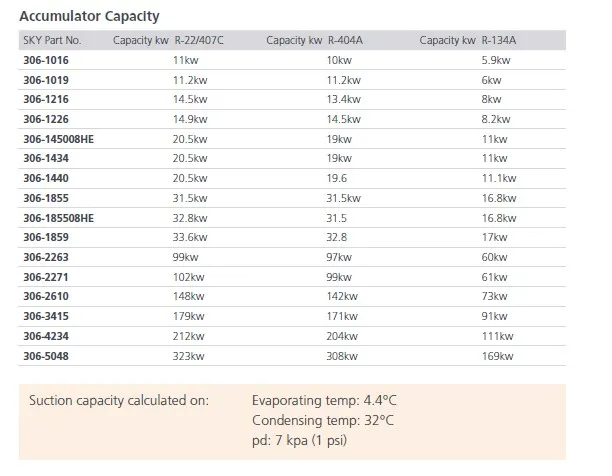

| Capacity R-22 / R-407C | 99kW |
| Capacity R-404A | 97kW |
| Capacity R-134a | 60kW |
| Design Feature | Full-Flow “U” Tube |
| Oil Return Feature | Large Surface Area Strainer at Oil Return Orifice |
| Manufacturing Standard | ISO/AS 5149.2 |
Applications
Larger commercial refrigeration systems
Air conditioning suction lines
Compressor floodback protection
Liquid refrigerant control
HVAC-R service and replacement work
Commercial plant maintenance
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Confirm system duty and refrigerant before selecting this accumulator.
The SKY 306-2263 is a 1-3/8" suction accumulator for larger HVAC-R systems requiring high suction capacity and compressor protection.
