SKY 306-4234 Suction Accumulator 2-5/8" ID
The SKY 306-4234 is a 2-5/8" ID suction accumulator for large commercial refrigeration and HVAC-R systems.
With a 34L internal volume and high suction capacity, the 306-4234 is designed to help protect compressors by managing liquid refrigerant return through the suction line.
Key Features
SKY suction accumulator
2-5/8" ID connection
34L internal volume
3,600kPa safe working pressure
Full-flow “U” tube with minimal pressure drop
Large surface area strainer fitted to oil return orifice
Manufactured in accordance with ISO/AS 5149.2
Suitable for large commercial refrigeration systems
Specifications
| Specification | Details |
|---|
| Part Number | 306-4234 |
| Brand | SKY Refrigeration |
| Product Type | Suction Accumulator |
| Series | SKY 306 Series |
| Connection Size | 2-5/8" ID |
| Height | 763mm |
| Diameter | 273mm |
| Volume | 34L |
| Weight | 12kg |
| Pressure Rating | 3,600kPa |

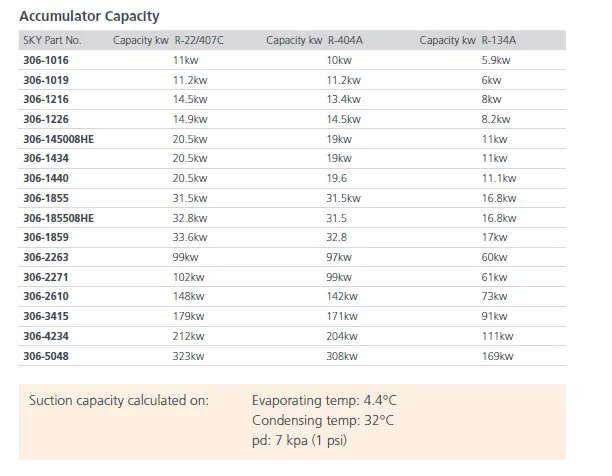

| Capacity R-22 / R-407C | 212kW |
| Capacity R-404A | 204kW |
| Capacity R-134a | 111kW |
| Design Feature | Full-Flow “U” Tube |
| Oil Return Feature | Large Surface Area Strainer at Oil Return Orifice |
| Manufacturing Standard | ISO/AS 5149.2 |
Applications
Large commercial refrigeration systems
Industrial HVAC-R systems
Compressor floodback protection
Liquid refrigerant control
Plant room refrigeration maintenance
High-capacity suction line applications
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Confirm mounting, pressure rating, refrigerant and system capacity before installation.
The SKY 306-4234 is a large 2-5/8" suction accumulator for commercial HVAC-R systems requiring high-capacity compressor protection.
