SKY 307-14-E Oil Separator / Reservoir 7/8" ID x 3/4" R/L Oil Return
The SKY 307-14-E is an oil separator/reservoir designed for use with electronic or external oil level control systems.
Built with a 7/8" ID main connection and 3/4" rotalock oil return, this model combines oil separation with an integrated reservoir arrangement for refrigeration systems requiring managed oil return control.
Key Features
SKY oil separator/reservoir
Designed for use with electronic or external level control
7/8" ID main connection
3/4" R/L oil return connection
500ml oil charge
Internal oil separation and storage design
Anti-corrosion powder coat finish
Solid copper connections
Suitable for commercial refrigeration oil management

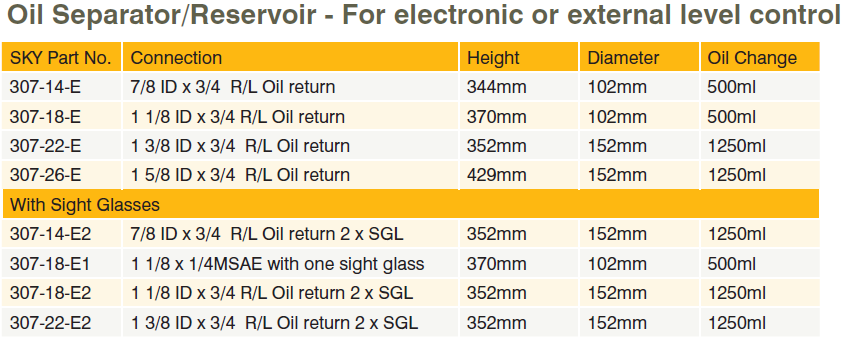

Specifications
| Specification | Details |
|---|
| Part Number | 307-14-E |
| Brand | SKY Refrigeration |
| Product Type | Oil Separator / Reservoir |
| Connection Size | 7/8" ID x 3/4" R/L Oil Return |
| Height | 344mm |
| Diameter | 102mm |
| Oil Charge | 500ml |
| Sight Glasses | Not listed |
| Capacity Data | Not listed in catalogue capacity table |
Applications
Electronic oil level control systems
External oil level control systems
Commercial refrigeration oil management
Compressor oil return support
HVAC-R service and replacement work
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Confirm oil control arrangement, oil return connection and system compatibility before installation.
The SKY 307-14-E is an oil separator/reservoir for HVAC-R systems using electronic or external oil level control.
