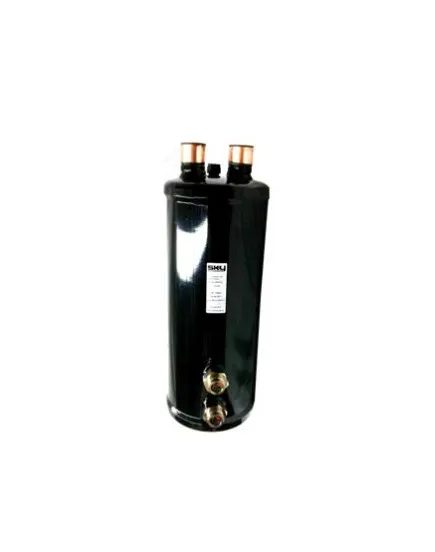

SKY 307-18-E Oil Separator / Reservoir 1-1/8" ID x 3/4" R/L Oil Return
The SKY 307-18-E is an oil separator/reservoir for refrigeration systems using electronic or external oil level control.
The integrated separator/reservoir design supports oil separation and managed oil return, making it suitable for commercial refrigeration applications where oil level control is handled externally.
Key Features
SKY oil separator/reservoir
For use with electronic or external level control
1-1/8" ID main connection
3/4" R/L oil return connection
500ml oil charge
Internal oil separation and storage design
Anti-corrosion powder coat finish
Solid copper connections
Suitable for commercial HVAC-R systems

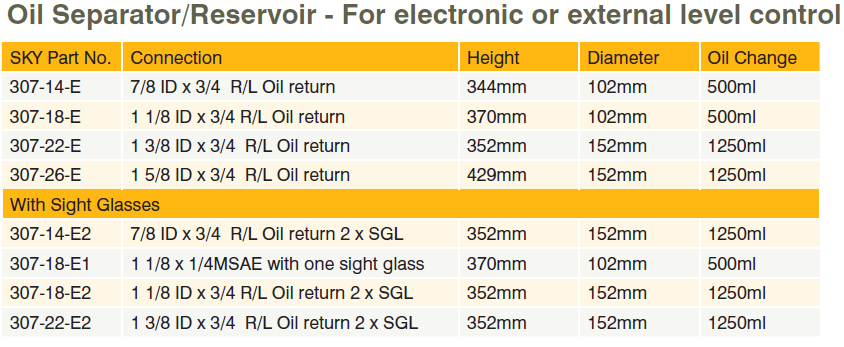

Specifications
| Specification | Details |
|---|
| Part Number | 307-18-E |
| Brand | SKY Refrigeration |
| Product Type | Oil Separator / Reservoir |
| Connection Size | 1-1/8" ID x 3/4" R/L Oil Return |
| Height | 370mm |
| Diameter | 102mm |
| Oil Charge | 500ml |
| Sight Glasses | Not listed |

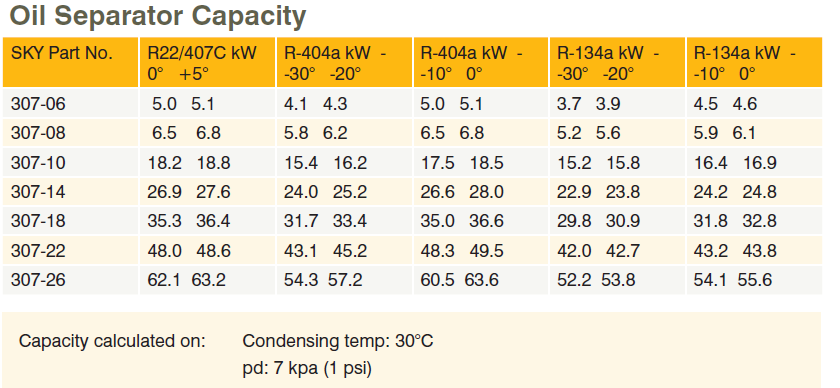

| Capacity Data | Not listed in catalogue capacity table |
Applications
Electronic oil level control systems
External oil level control systems
Commercial refrigeration
Compressor oil return management
HVAC-R plant service work
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Confirm oil separator sizing and oil control compatibility before installation.
The SKY 307-18-E is a 1-1/8" oil separator/reservoir for commercial refrigeration systems using managed oil level control.
