SKY 307-22 Oil Separator 1-3/8" ID
The SKY 307-22 is a 1-3/8" ID oil separator designed for larger refrigeration and air conditioning systems.
With a larger 152mm diameter body and 1250ml oil charge, the 307-22 supports oil separation and compressor oil return in medium to larger commercial HVAC-R applications.
Key Features
SKY oil separator
1-3/8" ID connection
1,250ml oil charge
Internal baffles and deaeration system
4,350kPa safe working pressure
Minimal pressure drop design
Two-stage stainless steel oil separation membranes
Separate oil storage compartment to allow separated oil to de-aerate and cool down
Anti-corrosion powder coat finish
Solid copper connections
Manufactured in accordance with ISO/AS 5149.2

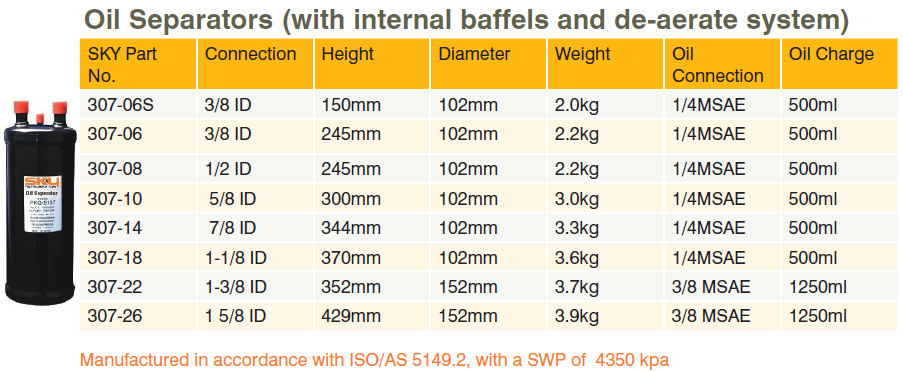

Specifications
| Specification | Details |
|---|
| Part Number | 307-22 |
| Brand | SKY Refrigeration |
| Product Type | Oil Separator |
| Connection Size | 1-3/8" ID |
| Height | 352mm |
| Diameter | 152mm |
| Weight | 3.7kg |
| Oil Connection | 3/8" MSAE |
| Oil Charge | 1250ml |
| Pressure Rating | 4,350kPa |

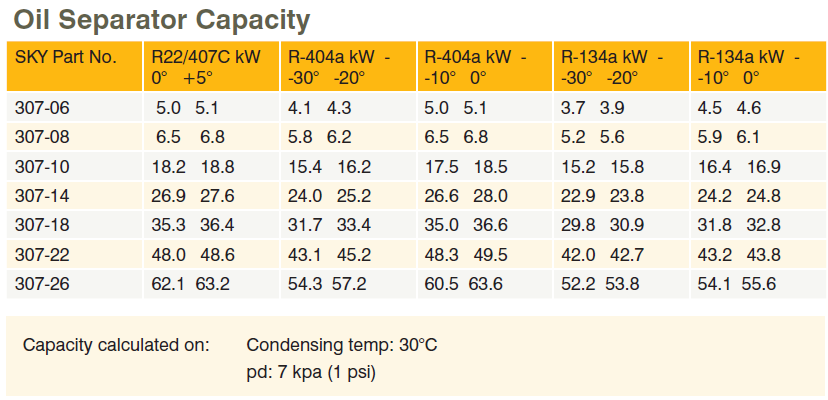

| Capacity R-22 / R-407C | 48.0kW at 0°C / 48.6kW at +5°C |
| Capacity R-404A | 43.1kW at -30°C / 45.2kW at -20°C; 48.3kW at -10°C / 49.5kW at 0°C |
| Capacity R-134a | 42.0kW at -30°C / 42.7kW at -20°C; 43.2kW at -10°C / 43.8kW at 0°C |
| Capacity Conditions | 30°C condensing temperature, 7kPa pressure drop |
Applications
Larger commercial refrigeration systems
Air conditioning systems
Compressor oil return support
Discharge line oil separation
HVAC-R plant maintenance
Medium to larger capacity applications
Safety & Documentation
Install only by suitably licensed refrigeration technicians. Confirm oil separator sizing, oil connection requirements and system operating conditions before installation.
The SKY 307-22 is a 1-3/8" oil separator for larger HVAC-R systems requiring strong oil separation and oil return support.
