The 4-way flow cassette provides wide and comfortable airflow to achieve optimum room comfort. The extremely discreet and non-intrusive compact grille design sits level with the ceiling. This model uses R32 refrigerant, which has a 67 per cent lower ‘Global Warming Potential Factor’ whilst still maintaining the performance of the air conditioner.
| Product Category | Cassette |
| Product Range | Compact Cassette range |
| Capacity | 2.50kW Cooling 3.20kW Heating |
| Model Number | AUTH09KVLA |
Technical Specifications
| Indoor unit | AUTH09KVLA |
| Outdoor unit | AOTH09KBTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Capacity Class kW | 2.5 |
| Cooling Capacity kW (Rated (Min - Max)) | 2.50 (0.9 - 3.6) |
| Heating Capacity kW (Rated (Min - Max)) | 3.20 (0.9 - 4.5) |
| Input Power Cooling kW (Rated (Max)) | 0.56 (1.13) |
| Input Power Heating kW (Rated (Max)) | 0.76 (1.68) |
| EER Cooling kW/kW | 4.46 |
| COP Heating kW/kW | 4.21 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) | 4 / 3.5 / 3.5 |
| Star Rating Heating (0-10) (Hot / Average / Cold) | 3.5 / 3 / 2.5 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.804 / 5.126 / 5.179 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.064 / 4.575 / 4.108 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 6.273 / 6.243 / 6.595 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 5.067 / 4.771 / 4.364 |
| Running Current amps (Cooling / Heating) | 3 / 4 |
| Moisture Removal l/hr | 0.7 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 33 / 28 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 34 / 27 |
| Outdoor Sound Pressure dBA (Cooling / Heating) | 41 / 46 |
| Outdoor Sound Power dBA | 59 |
| Air Circulation (Indoor - High Fan) Cooling l/sec | 150 |
| Air Circulation (Indoor - High Fan) Heating l/sec | 150 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 245 x 570 x 570 |
| Indoor Unit Weight kg | 15.00 |

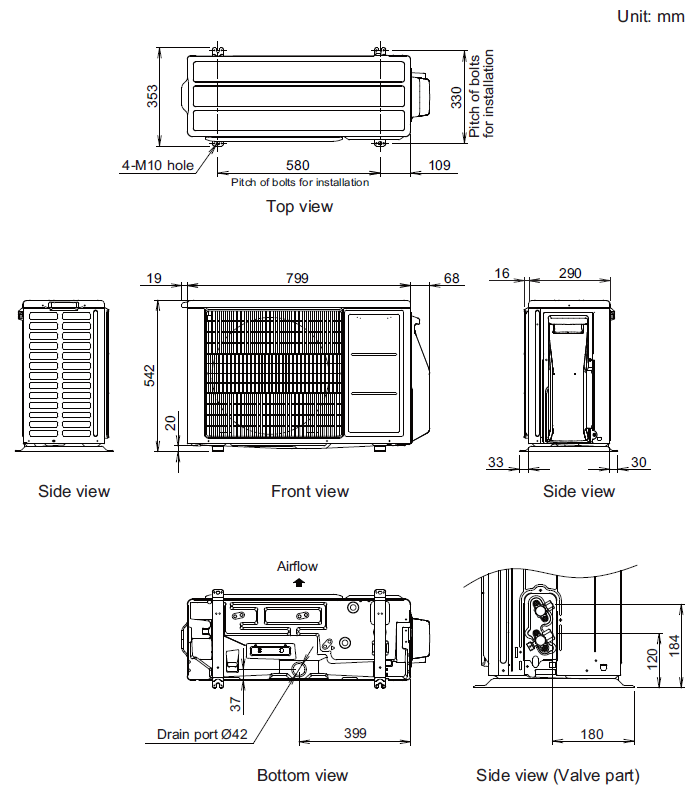

| Outdoor Unit Dimensions mm (Height x Width x Depth) | 542 x 799 x 290 |
| Outdoor Unit Weight kg | 32.00 |
| Grill Dimensions mm (Height x Width x Depth) | 49 x 620 x 620 |
| Grill Weight kg | 2.30 |
| Piping Connects mm Ø (Liquid / Gas) | 6.35 / 9.52 |
| Pipe Length m (Max (Precharged)) | 20 (15) |
| Max Height Difference m | 15 |
| Operation Range Cooling °CDB (Min to Max) | -10 to 46 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 850 |
| UART Communication | Yes |
| UART Communication Port | 2 Ports - CN65, CN75 |
