General Cassette Circular Flow with Wired Controller Three Phase 12.5kw

Product Category	Split Systems
Product Range	Circular Flow Cassette range
Capacity	12.50kW Cooling 14.00kW Heating
Model Number	AUTH45KRTA-3PH

Technical Specifications

Indoor unit	AUTH45KRTA
Outdoor unit	AOTH45KRTA
Operation Type	Reverse Cycle
Power Source V/Ph/Hz	400 / 3 / 50
Cooling Capacity kW (Rated (Min - Max))	12.50 (4 - 14)
Heating Capacity kW (Rated (Min - Max))	14.00 (4.2 - 16.5)
Input Power Cooling kW (Rated (Max))	3.89 (4.9)
Input Power Heating kW (Rated (Max))	3.89 (4.9)
EER Cooling kW/kW	3.21
COP Heating kW/kW	4.07
Star Rating Cooling (0-10) (Hot / Average / Cold)	3 / 3 / 3
Star Rating Heating (0-10) (Hot / Average / Cold)	3.5 / 2.5 / 2
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)	4.764 / 4.548 / 4.842
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)	5.119 / 5.331 / 5.773
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)	5.119 / 5.331 / 5.773
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)	5.139 / 4.658 / 4.043
Running Current amps (Cooling / Heating)	6.4 / 5.5
Moisture Removal l/hr	4.8
Indoor Sound Pressure Cooling dBA (High / Quiet)	46 / 36
Indoor Sound Pressure Heating dBA (High / Quiet)	46 / 36
Outdoor Sound Pressure dBA (Cooling / Heating)	55 / 57
Outdoor Sound Power dBA	71
Air Circulation (Indoor - High Fan) Cooling l/sec	542
Air Circulation (Indoor - High Fan) Heating l/sec	542

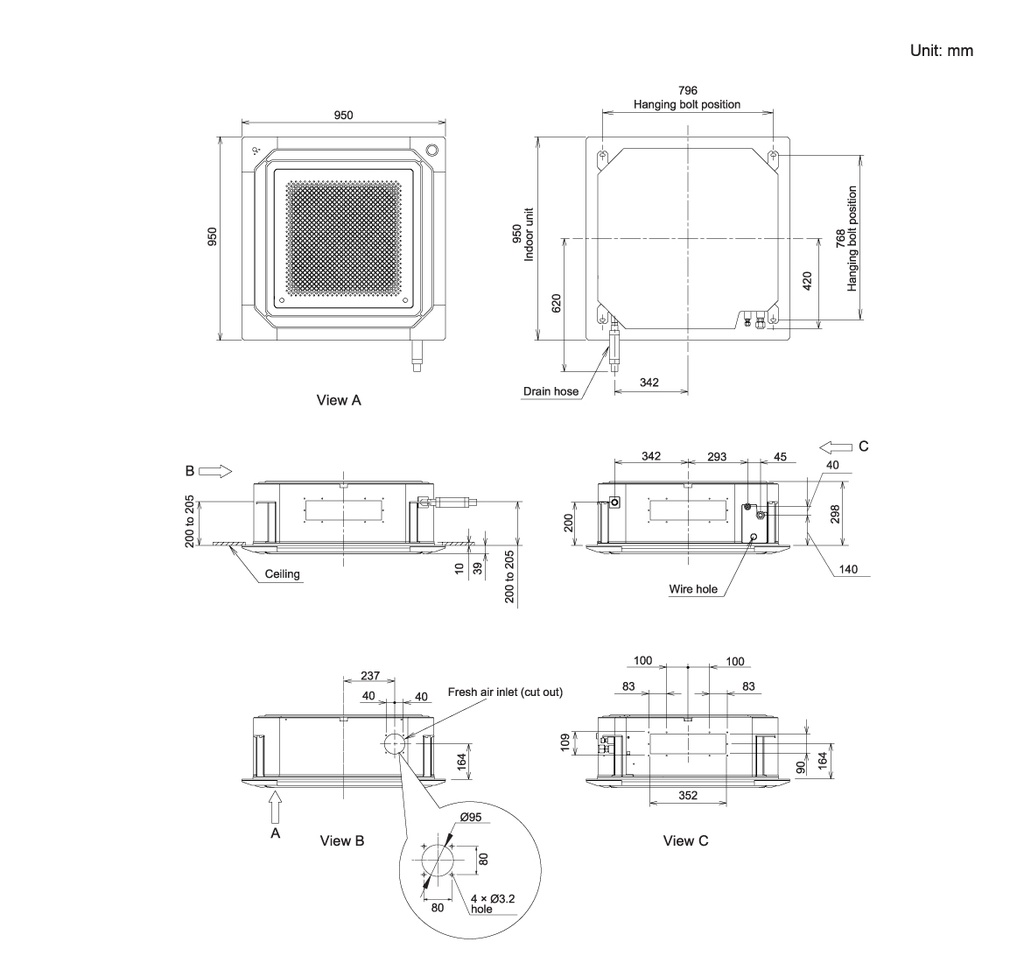

Indoor Unit Dimensions mm (Height x Width x Depth)	288 x 840 x 840
Indoor Unit Weight kg	29.00
Outdoor Unit Dimensions mm (Height x Width x Depth)	998 x 940 x 320
Outdoor Unit Weight kg	67.00
Grill Weight kg	6.00
Piping Connects mm Ø (Liquid / Gas)	9.52 / 15.88
Pipe Length m (Max (Precharged))	50 (30)
Max Height Difference m	30
Operation Range Cooling °CDB (Min to Max)	-10 to 50
Operation Range Heating °CDB (Min to Max)	-15 to 24
Refrigerant Type	R32
Refrigerant Amount g	2,180
UART Communication	Yes
UART Communication Port	2 Ports - CN65, CN75
