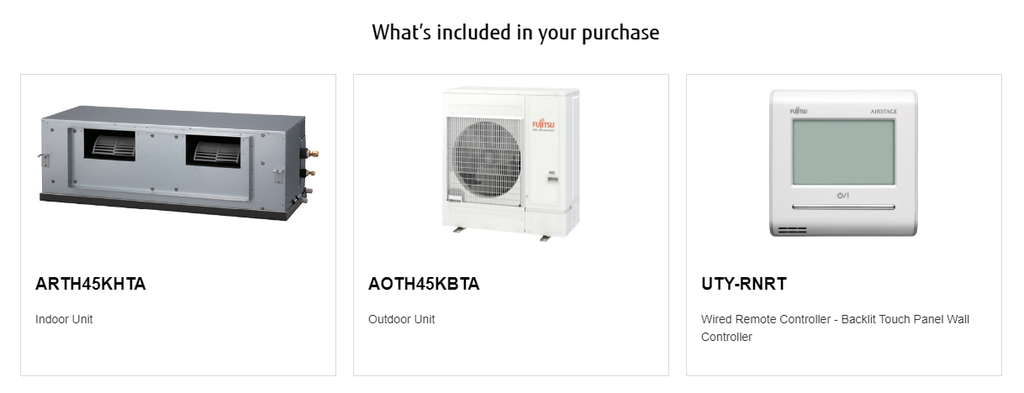

Includes standard controller
The High Static Single Phase R32 ducted air conditioner range is available in six models, ranging in capacity from 7.1kW to 15.5kW. All models have a maximum guaranteed ambient operating temperature range of up to 50 degrees in cooling mode, have demand response, and are zone system compatible.
| Model Number | SET-ARTH45KHTA |
| Indoor unit | ARTH45KHTA |

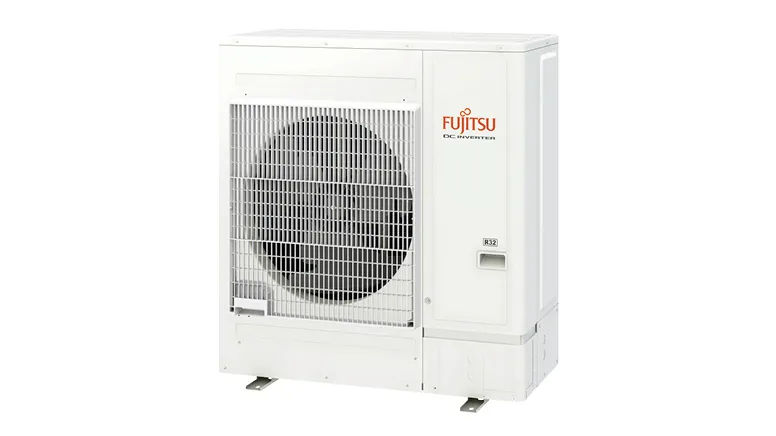

| Outdoor unit | AOTH45KBTA |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Cooling Capacity kW (Rated (Min - Max)) | 12.50 (4 - 14) |
| Heating Capacity kW (Rated (Min - Max)) | 14.00 (4.2 - 16.5) |
| Running Current amps (Cooling / Heating) | 16.7 / 15 |
| Static Pressure Range PA (Min to Max) | 60 to 260 |
| Air Circulation (Indoor - High Fan) Cooling l/sec | 903 |

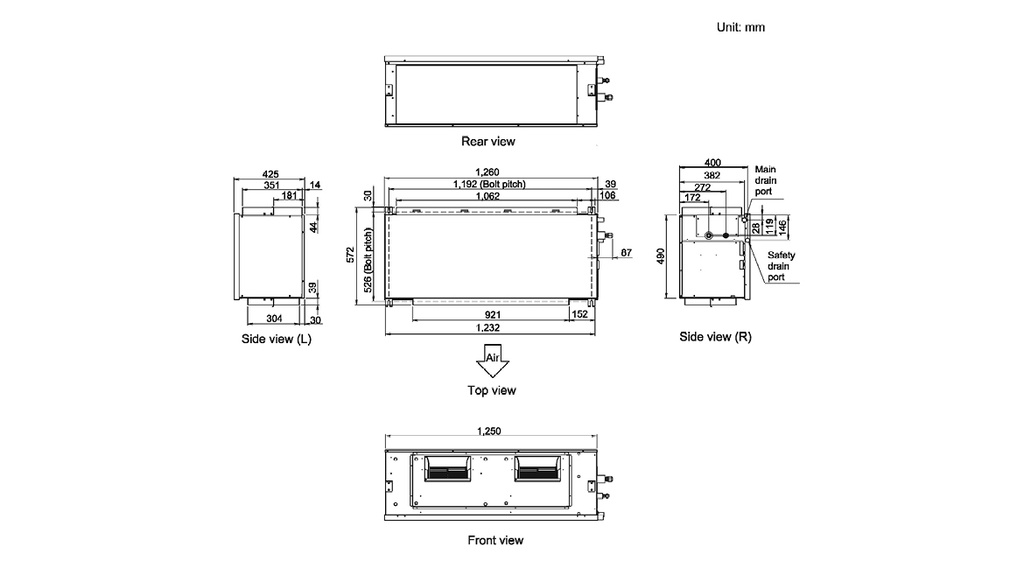

| Indoor Unit Dimensions mm (Height x Width x Depth) | 425 x 1250 x 490 |
| Indoor Unit Weight kg | 53.00 |

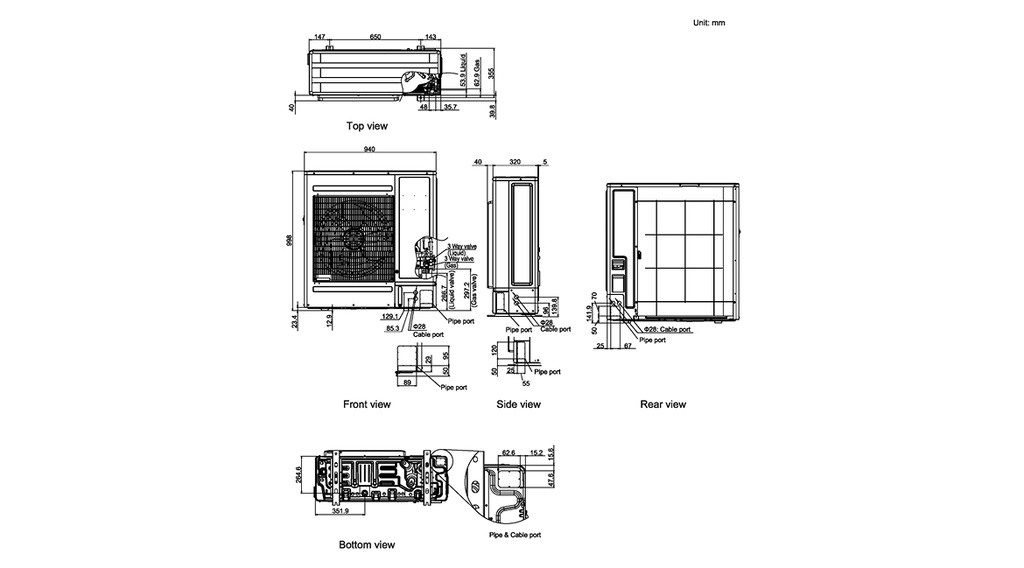

| Outdoor Unit Dimensions mm (Height x Width x Depth) | 998 x 940 x 320 |
| Outdoor Unit Weight kg | 67.00 |
| Piping Connects mm Ø (Liquid / Gas) | 9.52 / 15.88 |
| Pipe Length m (Max (Precharged)) | 50 (30) |
| Max Height Difference m | 30 |
| Refrigerant Type | R32 |
| Return Air Connection (H x W) | 351 x 1062 |
| Supply Air Connection (H x W) | 304 x 921 |
|
