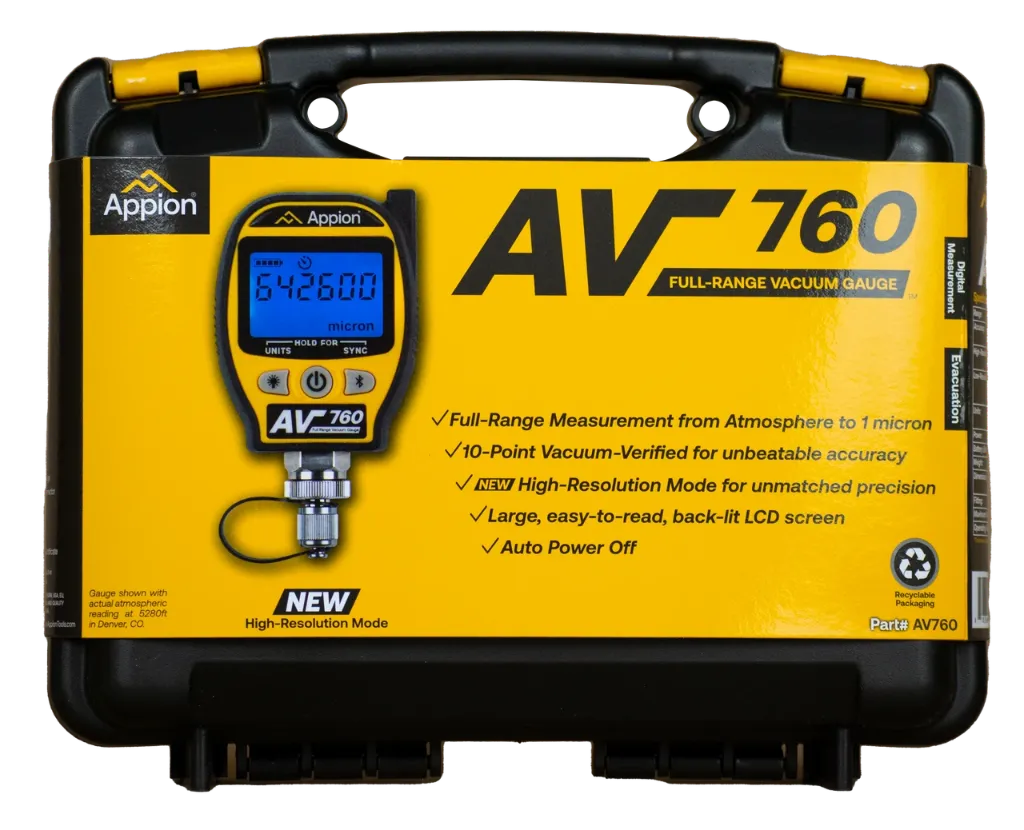

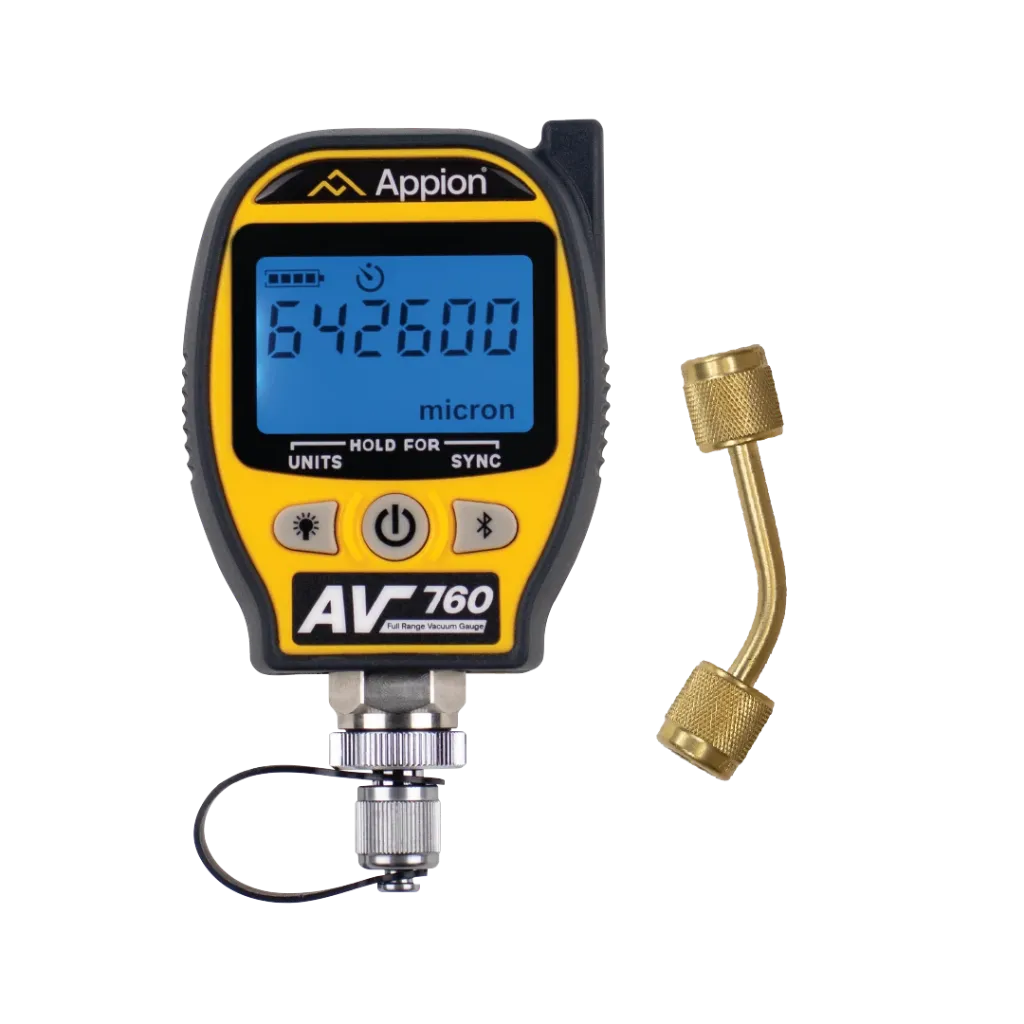

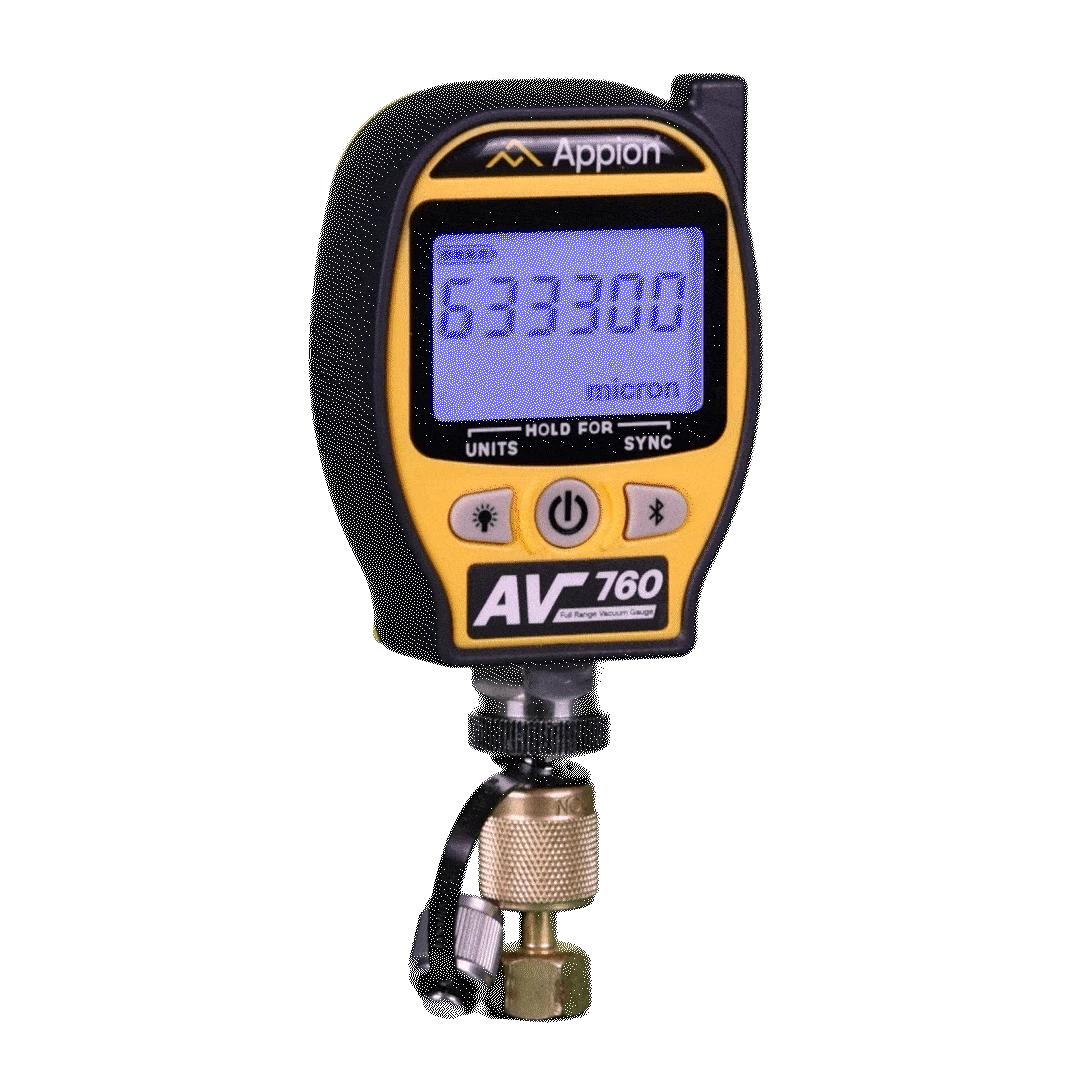

Appion AV760 Full Range Wireless Vacuum Gauge

The Appion AV760 is a wireless full-range vacuum gauge designed to measure the complete HVAC-R evacuation process from atmosphere down to 1 micron.

With Bluetooth connectivity to the Appion Central App, the AV760 allows remote monitoring, live data logging and evacuation analysis while providing high-resolution vacuum measurement throughout the evacuation process.

Features

• Measurement range: 760,000 to 1 micron

• High resolution: 1 micron from 1–14,999 microns

• 50-micron resolution from 15,000 microns to atmosphere

• 10-point Vacuum-Verified calibration

• Bluetooth range up to 300 ft / 91 m line-of-sight

• IP65 rated housing

• Maximum overpressure: 400 PSI

• 1/4" Male SAE Flare connection

• Displays microns, mTorr, kPa, mBar, in/Hg and psia

• Includes 4" 45° 1/4" Female Flare to 1/4" Female Flare adapter

• Compatible with Appion Central App for alarms, remote readings and data logging

Service Parts

The KT2110-R helps protect the AV760 sensor from oil contamination and maintain reliable vacuum measurement.

Manufacturer source: Appion AV760 Full Range Vacuum Gauge
