Appion MegaFlow™ 1/4" Speed-Y – SPDY14

Appion MegaFlow™ 1/4" Speed-Y – SPDY14

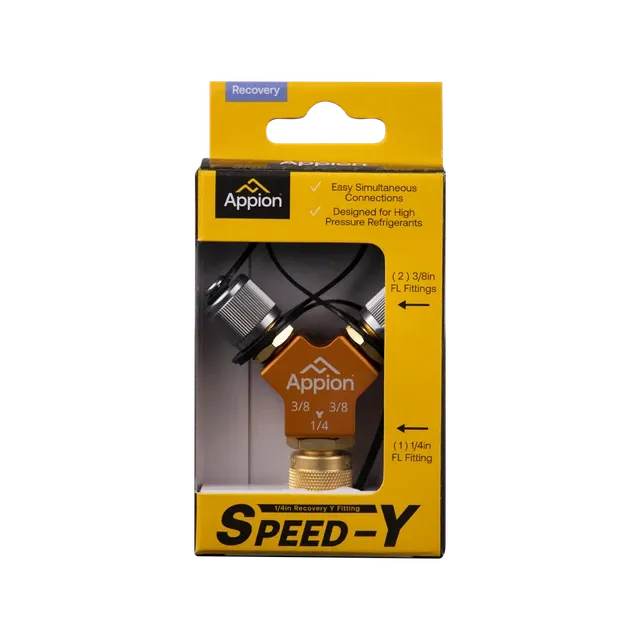

The Appion SPDY14 MegaFlow Speed-Y is a high-flow Y-fitting designed for fast HVAC-R evacuation and refrigerant recovery. Its large internal flow path allows two 3/8" service hoses to connect to a single 1/4" port without the restrictions typically associated with a traditional manifold.

Manufactured from aircraft-grade aluminium, the SPDY14 is vacuum rated to 20 microns and designed for high-pressure refrigerants including R410A.

Features

• High-flow Y-fitting for evacuation and refrigerant recovery

• 1 × 1/4" Female Flare connection

• 2 × 3/8" Male Flare connections

• Large unrestricted internal flow path

• Connects two large-diameter hoses to a single service or equipment port

• Helps reduce restrictions compared with conventional manifold arrangements

• Vacuum rated to 20 microns

• 800 PSI working pressure

• 4,000 PSI burst pressure

• Suitable for high-pressure refrigerants including R410A

• Aircraft-grade aluminium construction

• Protective plug helps keep moisture and contamination out

Technical Specifications

Service & Replacement Parts

Appion's current SPDY14 listing specifies a 1/4" swivel fitting O-ring kit as the compatible repair kit, and Appion's OEM parts catalogue identifies KTMV40 as its 1/4" swivel-fitting O-ring kit.

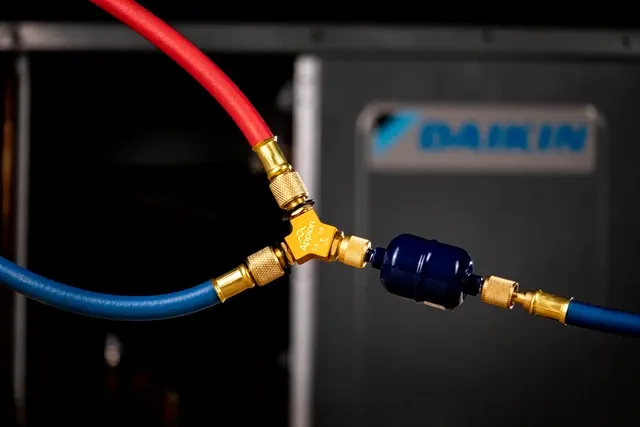

The SPDY14 is particularly useful for high-flow evacuation and recovery setups where two 3/8" hoses need to be combined into a single 1/4" connection while keeping flow restriction and potential leak points to a minimum.

Manufacturer sources:

Appion SPDY14 – 1/4" Speed-Y

Appion MegaFlow Speed-Y Brochure
