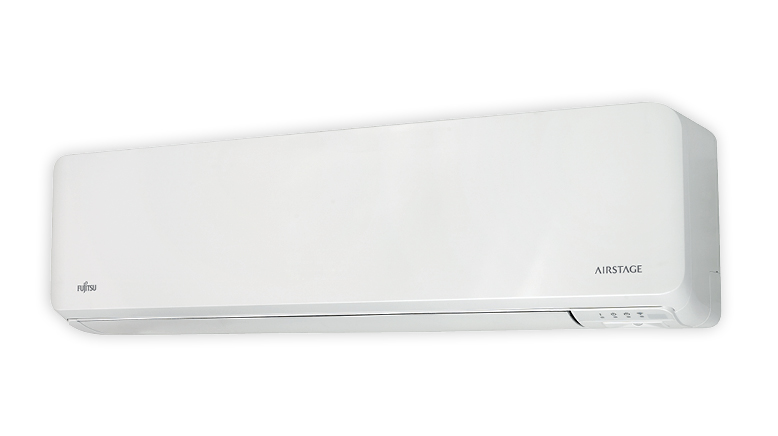

Ideal for large rooms. With energy management features such as Human Sensor Control, economy mode, and weekly timers, the Lifestyle range makes indoor comfort easy and cost-effective.
| Product Category | Wall Mounted |
| Product Range | Lifestyle range |
| Capacity | 7.10kW Cooling 8.00kW Heating |
| Model Number | ASTH24KMTE |
| Room Size | Medium Room |
| Indoor unit | ASTH24KMTE |
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Cooling Capacity kW (Rated (Min - Max)) | 7.10 (1.1 - 8.3) |
| Heating Capacity kW (Rated (Min - Max)) | 8.00 (1.1 - 10.1) |
| Input Power Cooling kW (Rated (Min - Max)) | 2.2 (0.24 - 3.15) |
| Input Power Heating kW (Rated (Min - Max)) | 2.04 (0.14 - 3.17) |
| EER Cooling kW/kW | 3.23 |
| COP Heating kW/kW | 3.92 |
| Star Rating Cooling (0-10) (Hot / Average / Cold) | 3.5 / 3.5 / 4 |
| Star Rating Heating (0-10) (Hot / Average / Cold) | 3.5 / 2.5 / 2 |
| Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.429 / 5.251 / 5.682 |
| Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold) | 5.249 / 4.345 / 3.603 |
| Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 6.041 / 6.916 / 7.917 |
| Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold) | 4.869 / 5.403 / 4.117 |
| Running Current amps (Cooling / Heating) | 9.8 / 9.3 |
| Moisture Removal l/hr | 2.7 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 49 / 29 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 49 / 29 |
| Air Circulation (Indoor - High Fan) Cooling l/sec | 325 |
| Air Circulation (Indoor - High Fan) Heating l/sec | 331 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 280 x 980 x 240 |
| Indoor Unit Weight kg | 12.50 |
| Piping Connects mm Ø (Liquid / Gas) | 6.35 / 12.7 |
| Pipe Length m (Max (Precharged)) | 30 (15) |
| Max Height Difference m | 25 |
| Operation Range Cooling °CDB (Min to Max) | -10 to 50 |
| Operation Range Heating °CDB (Min to Max) | -15 to 24 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 1,270 |
| UART Communication | Yes |
| UART Communication Port | 2 Ports - CN65, CN75 |
