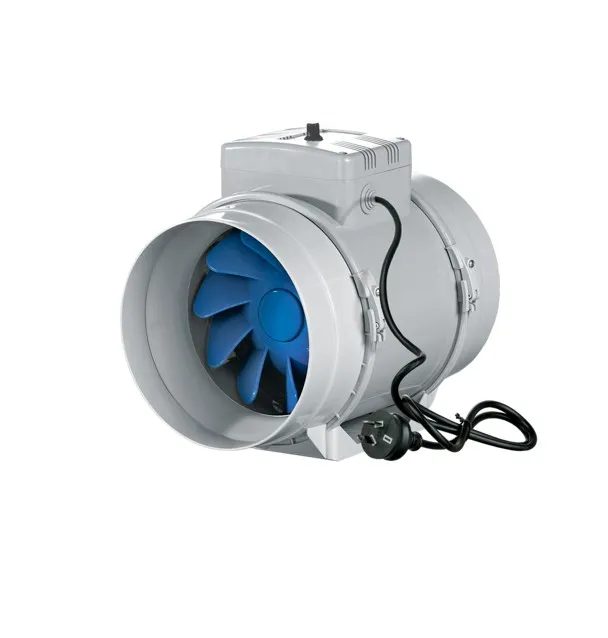

Blauberg BLATURBO150EC Turbo EC 150mm Inline Mixed Flow Fan
The Blauberg BLATURBO150EC is a 150mm Turbo EC inline mixed-flow fan designed for efficient ducted ventilation in residential, commercial and light industrial applications. With an energy-saving EC motor and high-performance mixed-flow impeller design, it is suited to installations that need strong airflow through 150mm round ductwork.
Blauberg lists the Turbo EC 150 with airflow up to 600m³/h / 167L/s, making it a strong option for bathrooms, laundries, utility areas, air transfer systems and general ducted exhaust applications where variable-speed EC fan performance is required.
Key Features
150mm inline mixed-flow fan
Energy-saving EC motor
High-performance Turbo EC fan design
Suitable for 150mm round duct systems
1~230V 50/60Hz supply
55W power input
600m³/h / 167L/s maximum airflow
3390 RPM fan speed
46 dB(A) sound pressure level at 3m
Suitable for transported air temperatures from -25°C to +55°C
Designed for supply and exhaust ventilation applications
Compact inline format for duct-mounted installation
Suitable for residential and commercial ventilation systems
Specifications
| Specification | Details |
|---|
| Product Code | BLATURBO150EC |
| Blauberg Model | Turbo EC 150 |
| Brand | Blauberg |
| Product Type | Inline Mixed Flow Fan |
| Duct Size | 150mm |
| Voltage | 1~230V |
| Frequency | 50/60Hz |
| Power | 55W |
| Current | 0.48A |
| Maximum Airflow | 600m³/h / 167L/s |
| Fan Speed | 3390 RPM |
| Sound Pressure Level | 46 dB(A) at 3m |
| Transported Air Temperature | -25°C to +55°C |
| Motor Type | EC Motor |
| Application | Supply and exhaust ducted ventilation |
| Source Note | Listed by Blauberg as Turbo EC 150 / BLATURBOEC150 |
Applications
Bathroom exhaust ventilation
Laundry ventilation
Utility room ventilation
Residential ducted exhaust systems
Light commercial ventilation
Air transfer systems
Supply or exhaust ventilation through 150mm round duct
Ventilation upgrades requiring efficient EC motor operation
Safety & Documentation
Install only by licensed electricians or qualified ventilation technicians. Confirm duct size, airflow requirement, static pressure, controller compatibility, mounting location, electrical supply, condensation management and service access before installation.
The Blauberg BLATURBO150EC is a high-output 150mm EC inline mixed-flow fan for ducted ventilation systems requiring efficient motor operation, strong airflow and compact inline installation.
