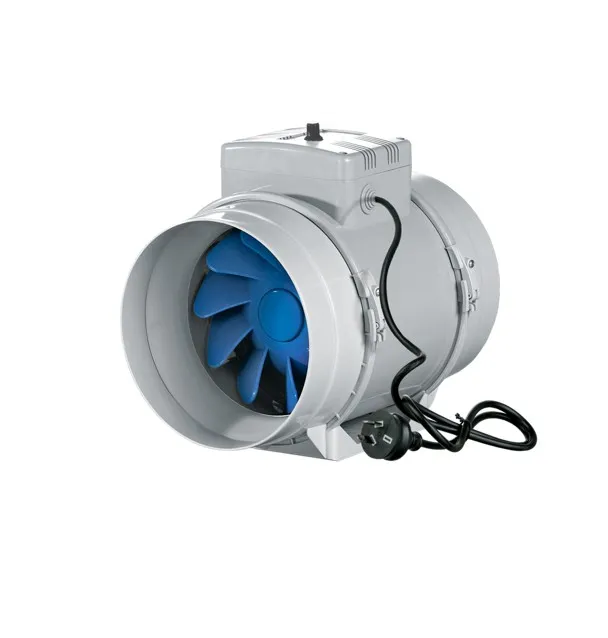

Blauberg BLATURBO200EC Turbo EC 200mm Inline Mixed Flow Fan
The Blauberg BLATURBO200EC is a 200mm Turbo EC inline mixed-flow fan designed for efficient ducted ventilation in residential, commercial and light industrial applications. With an energy-saving EC motor, mixed-flow impeller and plastic inline casing, it is suited to installations that need strong airflow through 200mm round ductwork.
Blauberg lists the Turbo EC 200 with 1040m³/h maximum airflow, 123W rated power and 49 dB(A) sound pressure at 3m, making it a high-output EC inline fan option for supply and exhaust ventilation systems.
Key Features
200mm inline mixed-flow fan
Energy-saving EC motor
Mixed-flow impeller design
Plastic casing
1~230V 50/60Hz power supply
123W rated power
1040m³/h maximum airflow
49 dB(A) sound pressure level at 3m
IPX4 ingress protection rating
Suitable for installation in any position
Suitable for transported air temperatures from -25°C to +55°C
Variable speed drive type listed in Blauberg Ecodesign data
Designed for supply and exhaust ducted ventilation applications
Specifications
| Specification | Details |
|---|
| Product Code | BLATURBO200EC |
| Blauberg Model | Turbo EC 200 |
| Brand | Blauberg |
| Product Type | Inline Mixed Flow Fan |
| Duct Size | 200mm |
| Voltage | 1~230V |
| Frequency | 50/60Hz |
| Rated Power | 123W |
| Unit Current | 1.02A |
| Maximum Airflow | 1040m³/h |
| Sound Pressure Level | 49 dB(A) at 3m |
| Motor Type | EC |
| Impeller Type | Mixed-flow |
| Casing Material | Plastic |
| Ingress Protection Rating | IPX4 |
| Weight | 3.95kg |
| Transported Air Temperature | -25°C to +55°C |
| Installation Position | Any position |
| Dimensions | ØD 198mm / ØD1 209mm / B 239mm / H 277.5mm / L 295.5mm |
| Ecodesign Maximum Flow Rate | 910m³/h |
| Ecodesign Electric Power Input | 123W |
| Ecodesign Reference Pressure Difference | 50Pa |
| Sound Power Level | 69 dB(A), as listed in Ecodesign data |
| Application | Supply and exhaust ducted ventilation |
Applications
Bathroom exhaust ventilation
Laundry ventilation
Utility room ventilation
Residential ducted exhaust systems
Light commercial ventilation
Air transfer systems
Supply or exhaust ventilation through 200mm round duct
Ventilation upgrades requiring efficient EC motor operation
Projects requiring a compact inline fan with higher airflow capacity than 150mm models
Safety & Documentation
Install only by licensed electricians or qualified ventilation technicians. Confirm duct size, airflow requirement, static pressure, controller compatibility, mounting location, electrical supply, condensation management and service access before installation.
The Blauberg BLATURBO200EC is a high-output 200mm EC inline mixed-flow fan for ducted ventilation systems requiring efficient motor operation, strong airflow and compact inline installation.
