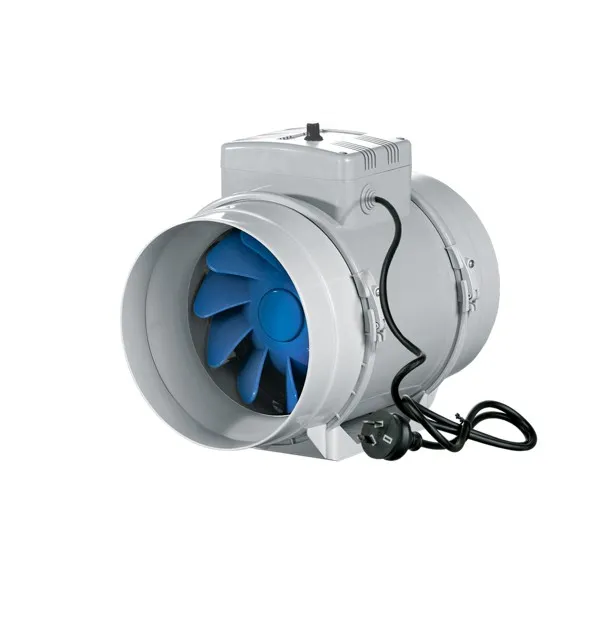

Blauberg BLATURBO250EC Turbo EC 250mm Inline Mixed Flow Fan
The Blauberg BLATURBO250EC is a 250mm Turbo EC inline mixed-flow fan designed for efficient ducted ventilation in residential, commercial and light industrial applications. With an energy-saving EC motor, mixed-flow impeller design and 250mm duct connection, it is suited to installations requiring strong airflow through larger round ductwork.
Blauberg lists the Turbo EC 250 with airflow up to 1285m³/h / 357L/s, making it a high-output option for supply and exhaust ventilation systems where efficient EC motor performance and compact inline installation are required.
Key Features
250mm inline mixed-flow fan
Energy-saving EC motor
Turbo EC high-performance fan design
Suitable for 250mm round duct systems
1~230V 50/60Hz supply
169W power input
1285m³/h / 357L/s maximum airflow
2870 RPM fan speed
53 dB(A) sound pressure level at 3m
Suitable for transported air temperatures from -25°C to +55°C
Plastic inline casing
Mixed-flow impeller design
Suitable for installation in ducted supply or exhaust systems
Specifications
| Specification | Details |
|---|
| Product Code | BLATURBO250EC |
| Blauberg Listed Part Number | BLATURBOEC250 |
| Blauberg Model | Turbo EC 250 |
| Brand | Blauberg |
| Product Type | Inline Mixed Flow Fan |
| Duct Size | 250mm |
| Voltage | 1~230V |
| Frequency | 50/60Hz |
| Power | 169W |
| Current | 1.38A |
| Maximum Airflow | 1285m³/h / 357L/s |
| Fan Speed | 2870 RPM |
| Sound Pressure Level | 53 dB(A) at 3m |
| Transported Air Temperature | -25°C to +55°C |
| Motor Type | EC Motor |
| Impeller Type | Mixed-flow |
| Casing Material | Plastic |
| Weight | 7.8kg |
| Dimensions | ØD 247mm / ØD1 257mm / B 288mm / H 339mm / L 383mm |
| Application | Supply and exhaust ducted ventilation |
| Source Note | Listed by Blauberg as Turbo EC 250 / BLATURBOEC250 |
Applications
Bathroom exhaust ventilation
Laundry ventilation
Utility room ventilation
Larger residential ducted exhaust systems
Light commercial ventilation
Air transfer systems
Supply or exhaust ventilation through 250mm round duct
Ventilation upgrades requiring efficient EC motor operation
Projects requiring higher airflow than 150mm or 200mm inline fan models
Safety & Documentation
Install only by licensed electricians or qualified ventilation technicians. Confirm duct size, airflow requirement, static pressure, controller compatibility, mounting location, electrical supply, condensation management and service access before installation.
The Blauberg BLATURBO250EC is a high-output 250mm EC inline mixed-flow fan for ducted ventilation systems requiring efficient motor operation, strong airflow and compact inline installation.
