ebm-papst D3G160HA0402 – 160mm EC Dual-Inlet Centrifugal Fan

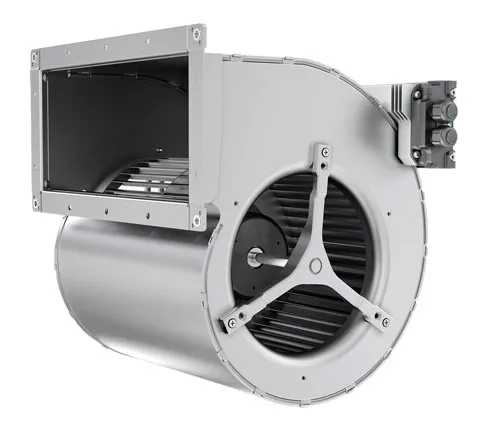

The ebm-papst D3G160-HA04-02 is a dual-inlet centrifugal fan featuring forward-curved impellers, a galvanised steel housing with mounting flange and an electronically commutated (EC) motor. Designed for integration into air-handling and ventilation equipment, it combines adjustable airflow with integrated motor protection and flexible control options.
Operating from a 230V single-phase supply, the fan supports 0–10V or PWM speed control and RS-485 Modbus RTU communication. An integrated PID controller allows the fan to respond to a suitable external sensor, while tachometer output and an alarm relay provide operating feedback.
Key Features
160mm forward-curved, dual-inlet centrifugal fan.
EC motor with integrated electronics and soft start.
Galvanised steel impellers and flanged housing.
Variable speed control via 0–10V DC or PWM.
RS-485 Modbus RTU communication and integrated PID controller.
Tachometer output, alarm relay and operation/alarm display.
Integrated thermal overload protection and motor current limitation.
Ball bearings and S1 continuous-duty operation.
Technical Specifications
| Specification | Details |
|---|
| Brand | ebm-papst |
| Model | D3G160-HA04-02 |
| Product Code | D3G160HA0402 |
| Motor | M3G084-DF |
| Fan Size | 160mm |
| Power Supply | 230V AC, single-phase, 50/60Hz |
| Voltage Range | 200–277V AC |
| Nominal Power Consumption | 750W |
| Nominal Current Draw | 3.3A |
| Nominal Speed | 2,500rpm at free air |
| Free-Air Flow | 2,190m³/h / approximately 608L/s |
| Motor Protection Rating | IP54 |
| Insulation Class | F |
| Operating Ambient Temperature | −25°C to +60°C |
| Weight | 7.8kg |
| Electrical Connection | Terminal strip |
| Rotation | Counterclockwise, viewed towards rotor |
Airflow Performance
Manufacturer’s measured performance at 230V, 50Hz:
| Static Pressure | Airflow |
|---|
| 0Pa — free air | 608L/s |
| 400Pa | 508L/s |
| 750Pa | 357L/s |
| 900Pa | 210L/s |
Actual airflow depends on system resistance and installation conditions. Select the fan using the manufacturer’s performance curve and confirm mounting dimensions and control compatibility for replacement applications.
