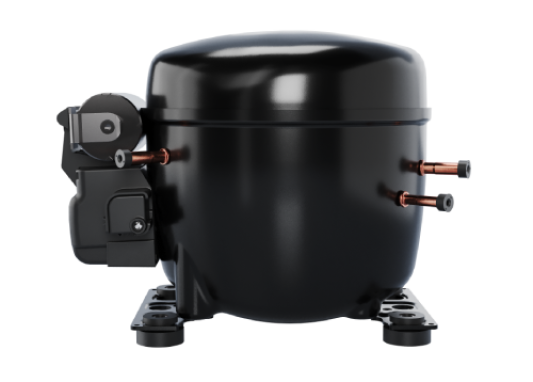

Embraco EGAS80HLR Hermetic Reciprocating Compressor – R134a
The Embraco EGAS80HLR is a hermetic reciprocating compressor designed for low back pressure (LBP) refrigeration applications using R134a refrigerant. It is rated for 220–240 V, single-phase, 50/60 Hz operation and uses an RSIR/CSIR motor with low starting torque (LST).
With a 6.36 cm³ displacement, the EGAS80HLR is suited to domestic and light commercial low-temperature refrigeration applications using capillary expansion.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Embraco |
| Model | EGAS80HLR |
| Compressor Type | Hermetic reciprocating |
| Application | LBP |
| Refrigerant | R134a |
| Voltage | 220–240 V |
| Phase | Single phase |
| Frequency | 50/60 Hz |
| Motor Type | RSIR / CSIR |
| Starting Torque | LST – Low Starting Torque |
| Displacement | 6.36 cm³ |
| HP Class | 1/4+ HP |
| Cooling Capacity | 228 W @ −20°C evaporation, 50 Hz |
| Rated Cooling Capacity | 195 W @ −23.3°C evaporation / 54.4°C condensing, 50 Hz |
| Rated Input Power | 128 W |
| Rated Current | 1.07 A @ 220 V / 50 Hz |
| LRA | 14.5 A catalogue value |
| Evaporating Range | −35°C to −10°C |
| Oil Type | POE ISO 10 |
| Oil Charge | 230 cm³ catalogue value |
| Weight | 10 kg catalogue value |
| Maximum Height | 195 mm |
| Suction Connection | Not verified from current OEM catalogue |
| Discharge Connection | Not verified from current OEM catalogue |
| Recommended Drier | Not verified |
Performance – R134a, 50 Hz
Embraco publishes the rated ASHRAE LBP operating point at −23.3°C evaporating temperature and 54.4°C condensing temperature:
| Evap Temp | Cooling Capacity | Input Power | Current |
|---|
| −23.3°C | 195 W | 128 W | 1.07 A |
For the Embraco catalogue's ASHRAE LBP, 55°C condensing performance curve, cooling capacity at −20°C evaporation is 228 W at 50 Hz.
Manufacturer sources:
Embraco Compressor Technical Data – EG AS80HLR
Embraco Compressors Catalogue – R134a 50 Hz Portfolio
