ActronAir AIRES 13kW Ducted Reverse Cycle Set – EVA13AS/CRS13AS

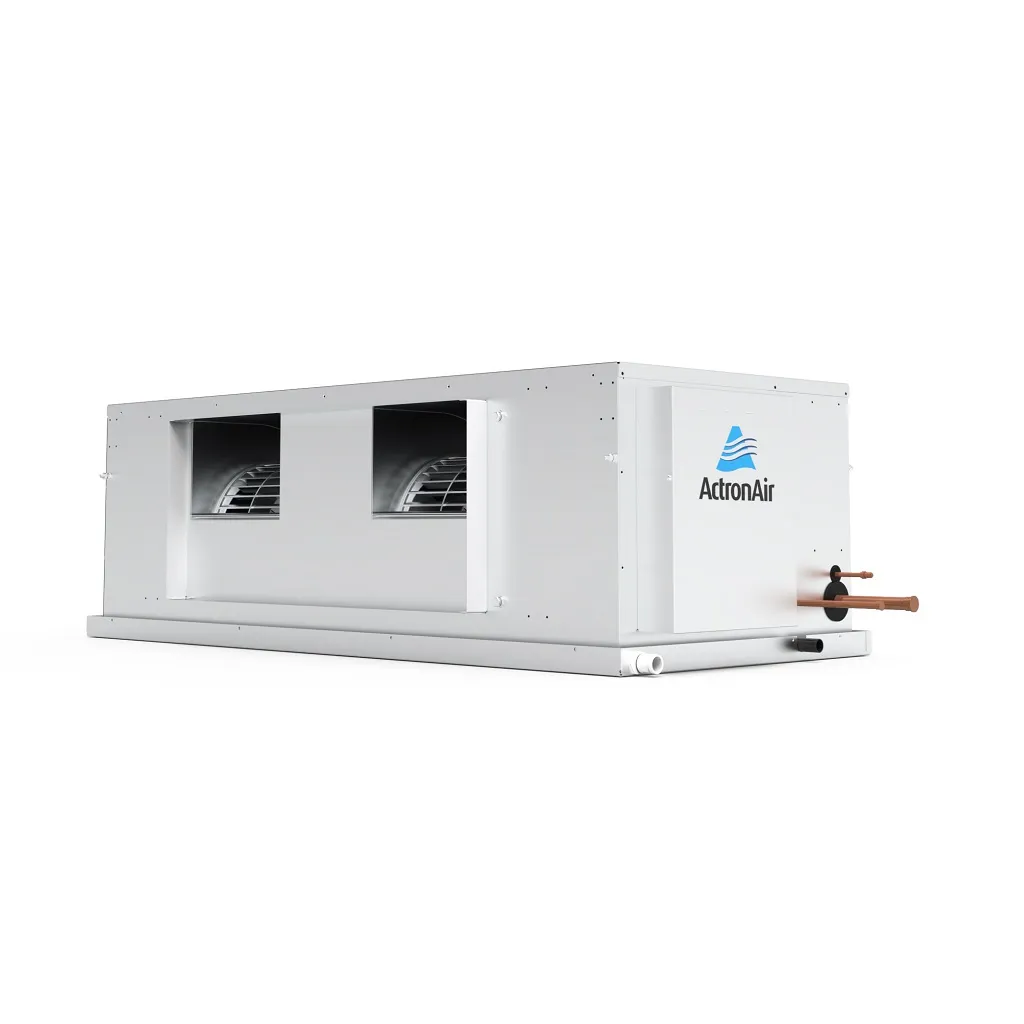

Deliver year-round comfort with the ActronAir AIRES 13kW single-phase ducted system. Pairing the EVA13AS indoor unit with the CRS13AS outdoor unit, this inverter system provides 13,020W rated cooling and 15,000W rated heating, with variable capacity to suit changing conditions.
Designed for Australian homes, AIRES combines R32 refrigerant, an efficient EC indoor fan motor and flexible zoning options for practical whole-home temperature control.
Key Features
Inverter twin rotary compressor: Adjusts output as heating and cooling demand changes.
Up to eight zones: Supports flexible comfort control with compatible controls and zoning accessories.
Choice of controls: Compatible with ActronAir NEO and LR7 controllers, with mobile app access available through NEO.
Compact outdoor unit: Single-fan design provides greater installation flexibility.
EC indoor fan motor: Variable-speed airflow to suit the duct system.
Protected coils: Fin protection on both indoor and outdoor coils.
Indoor & Outdoor
| Specification | Details |
|---|
| Indoor Model | EVA13AS |
| Indoor Dimensions | 412 × 1090 × 615mm (H × W × D)* |
| Indoor Weight | 44kg |
| Outdoor Model | CRS13AS |
| Outdoor Dimensions | 997 × 1020 × 340mm (H × W × D) |
| Outdoor Weight | 85kg |
| Supply Air Flange | 300 × 715mm (H × W) |
| Return Air Flange | 340 × 900mm (H × W) |
| Pipe Sizes | 3/8″ liquid × 3/4″ gas |
| Refrigerant | R32 |
| Cooling Capacity | 5.55–15.01kW; 13,020W rated |
| Heating Capacity | 4.69–17.03kW; 15,000W rated |
| Air Flow | 520 / 650 / 780L/s (min / nominal / max) |
| Drain | Primary: 20mm OD; safety: 20mm ID |
| Power Supply | 230V / Single Phase + Neutral / 50Hz |
| Max Current | 22.07A total full-load current; suggested circuit breaker 25A |
Indoor dimensions follow ActronAir’s model-specific technical drawing; see specification note below.
Recommended filter drier: R32-compatible 3/8″ ODF solder bi-flow drier, selected to suit the installation. ActronAir lists the drier as not factory supplied or fitted.
Suitable for residential ducted installations and replacement projects where system sizing, ductwork and electrical supply suit the application. The AIRES 13kW set offers flexible control options and inverter performance for comfortable living throughout the year.
