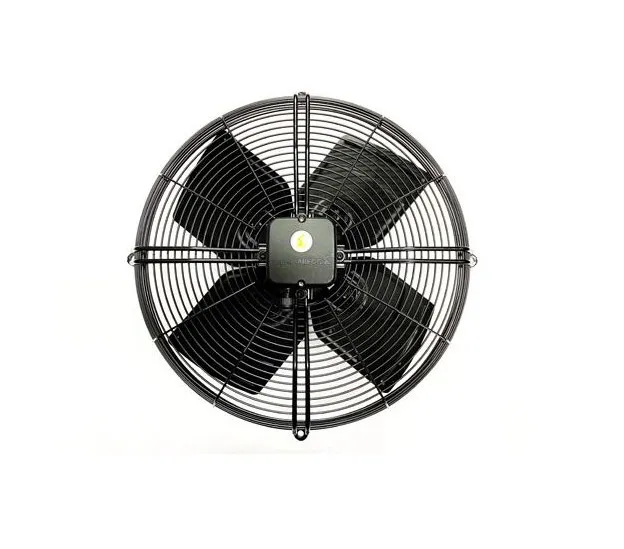

ZIEHL-ABEGG FB063-SDK.4I.V4P 630 mm Three-Phase 6-Pole Axial Fan with Grille
The ZIEHL-ABEGG FB063-SDK.4I.V4P is a three-phase basket-grille axial fan featuring a 627 mm four-blade aluminium impeller and external-rotor motor. Its induced-air configuration provides dependable airflow for refrigeration condensers, HVAC equipment and industrial cooling systems.
Features
Three-phase external-rotor AC motor
Low-speed six-pole design
Four-blade aluminium impeller
Protective basket grille included
Induced airflow configuration
Integrated thermal-contact protection
Moisture and hot-climate protection
Long-life lubricated ball bearings
IP54-rated motor enclosure
Terminal-box electrical connection
Specifications
| Specification | Details |
|---|
| Manufacturer | ZIEHL-ABEGG |
| Model | FB063-SDK.4I.V4P |
| Article number | 107794 |
| Fan type | Basket-grille axial fan |
| Nominal fan size | 630 mm |
| Actual impeller diameter | Approximately 627 mm |
| Motor type | Three-phase AC external rotor |
| Number of poles | 6 |
| Supply voltage | 400 V AC, three-phase |
| Frequency | 50 Hz |
| Input power | 480 W |
| Operating current | 0.93 A |
| Rotational speed | 870 RPM |
| Air volume | Approximately 10,800 m³/h |
| Number of blades | 4 |
| Airflow direction | Induced, airflow over motor side |
| Impeller material | Aluminium |
| Rotor material | Aluminium |
| Surface colour | RAL 9005 black |
| Motor protection | Integrated thermal contact |
| Enclosure protection | IP54 |
| Thermal class | THCL 155 / Class F |
| Bearing type | Ball bearings with long-life lubrication |
| Electrical connection | Terminal box |
| Installation position | Horizontal or vertical |
| Minimum operating temperature | Approximately −40°C |
| Maximum ambient temperature | Approximately +55°C |
| Net weight | 12.80 kg |
| Protective grille | Included |
| Mounting arrangement | Basket-grille assembly |
| Compliance | CE |
Model Identification
FB – ZIEHL-ABEGG axial-fan series with sheet blades
063 – Nominal 630 mm fan size
SDK – Three-phase external-rotor motor configuration
4I – Four-blade impeller configuration
V4P – Induced-air basket-grille construction
107794 – ZIEHL-ABEGG article number
Typical Applications
Commercial refrigeration condensers
Evaporators and air coolers
Air-handling units
Air-cooled heat exchangers
HVAC equipment
Industrial machinery cooling
Electrical and transformer cooling
General industrial ventilation
Sources: ZIEHL-ABEGG/Airefrig technical documentation
