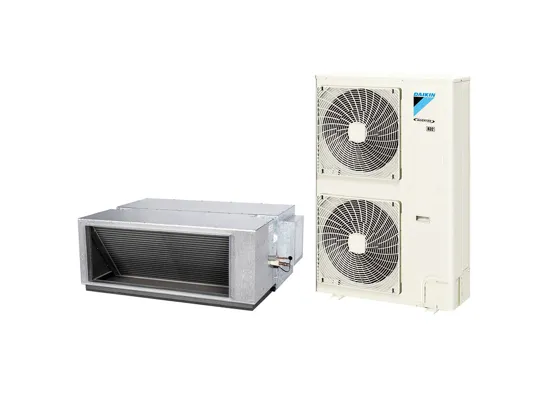

The Daikin FDYA180A-DV is a powerful single-phase reverse-cycle ducted air-conditioning system delivering 18.0kW rated cooling and 20.0kW rated heating capacity. It combines an Australian-made ducted indoor unit with a compact R32 inverter outdoor unit designed for larger homes and demanding residential applications.
The system incorporates an energy-efficient DC fan motor, automatic airflow adjustment, flexible zoning capability and an extended outdoor operating range. Its side-discharge outdoor unit is only 320mm deep, helping simplify installation where side access is limited.
Features
18.0kW rated cooling capacity
20.0kW rated heating capacity
Reverse-cycle heating and cooling
Energy-efficient inverter technology
R32 refrigerant
Australian-made indoor unit
High-efficiency DC indoor fan motor
Lightweight aerodynamic Sirocco fan
Automatic airflow adjustment
Three selectable indoor fan speeds
Flexible zoning capability
Night-time quiet mode
Compact 320mm-deep outdoor unit
Cooling operation at outdoor temperatures up to 52°C
Heating operation at outdoor temperatures down to −20°C
Factory refrigerant charge suitable for up to 30m of piping
Optional refrigerant leak-detection system
Single-phase power supply
System Components
| Component | Model |
|---|
| Indoor unit | FDYA180AV1 |
| Outdoor unit | RZAS180DV1 |
Indoor & Outdoor Specifications
| Specification | Details |
|---|
| Indoor Model | FDYA180AV1 |
| Indoor Dimensions | 470 × 1200 × 997mm (H × W × D) |
| Indoor Weight | 70kg |
| Outdoor Model | RZAS180DV1 |
| Outdoor Dimensions | 1430 × 940 × 320mm (H × W × D) |
| Outdoor Weight | 118kg |
| Supply Air Flange | 350 × 918mm |
| Return Air Flange | 393 × 918mm flanged opening |
| Pipe Sizes | 9.5mm liquid / 19.1mm gas, brazed connections |
| Refrigerant | R32 |
| Cooling Capacity | 9.0–18.0–20.0kW (minimum–rated–maximum) |
| Heating Capacity | 10.0–20.0–22.4kW (minimum–rated–maximum) |
| Air Flow | 1160L/s nominal / 1200L/s maximum |
| Drain | BSP 3/4-inch internal thread |
| Power Supply | 1-phase, 220–240V, 50Hz |
| Max Current | Not published for the RZAS180DV1 in the current Daikin product brochure; confirm from the current installation manual or outdoor-unit nameplate |
Performance Data
| Specification | Cooling | Heating |
|---|
| Rated Capacity | 18.0kW | 20.0kW |
| Rated Power Input | 5.16kW | 4.79kW |
| EER / COP | 3.49 | 4.18 |
| Indoor Sound Level – High | 42.1dB(A) | 42.1dB(A) |
| Outdoor Sound Level at 1m | 59dB(A) | 61dB(A) |
Additional Technical Data
| Specification | Details |
|---|
| Fan Speeds | High / Medium / Low |
| Maximum Piping Length | 50m |
| Factory Pre-charge | Up to 30m of piping |
| Compressor Type | Hermetically sealed swing compressor |
| Outdoor Cooling Range | −5°C to 52°C dry bulb |
| Outdoor Heating Range | −20°C to 15.5°C wet bulb |
| Outdoor Sound Power Level | 82dB(A) |
Optional Controls & Accessories
| Model | Description |
|---|
| BRC1E63 | Nav Ease wired controller |
| BRP15B61 | Daikin Airbase wireless LAN adaptor |
| BRC24Z4B9 | Four-zone controller for 24V zone equipment |
| BRC24Z8B9 | Eight-zone controller for 24V zone equipment |
| BRY43A | Refrigerant leak-detector sensor |
| BRP9A73 | Leak-sensor output accessory for third-party control integration |
All controls and accessories listed above are optional and sold separately. Compatibility, required interfaces, zoning voltage and refrigerant leak-detection requirements must be confirmed before ordering.
Refrigerant Leak Detection
The optional BRY43A refrigerant leak-detector sensor may be required where the calculated refrigerant concentration exceeds the limits specified by AS/NZS 60335.2.40.
When configured with a compatible Daikin AirHub or zone controller, the system can respond to a detected refrigerant leak by stopping the compressor, operating the indoor fan and opening the connected zone dampers to help disperse refrigerant safely. The BRP9A73 accessory provides a leak-output relay signal for integration with compatible third-party controls.
Typical Applications
Large residential homes
Whole-home ducted air conditioning
Large open-plan living areas
Multi-zone residential installations
New-build and renovation projects
Properties with restricted outdoor side access
Important Information
This package includes the FDYA180AV1 indoor unit and RZAS180DV1 outdoor unit only.
A wall controller is not included and must be ordered separately.
Ductwork, plenums, supply-air grilles, return-air grilles, filters, dampers, zone motors and installation materials are not included.
The supply-air opening is 350 × 918mm.
The return-air connection is a 393 × 918mm rectangular flanged opening.
The BRY43A refrigerant leak sensor and BRP9A73 output accessory are not included.
Refrigerant concentration calculations must be completed as part of the system design.
Installation must comply with current Daikin instructions and AS/NZS 60335.2.40 requirements.
R22 retrofit capability is not available for this 18.0kW model.
Installation must be completed by a suitably licensed air-conditioning and refrigeration technician.
Specifications remain subject to Daikin’s current engineering documentation and product revisions.
Sources: Daikin Australia Premium Inverter Ducted system, Daikin announcement for the FDYA180AV1 and FDYA200AV1 and the official Daikin Ducted Systems brochure.
