Daikin FDYA200A-DY Premium Inverter Ducted Air Conditioner – 20.0kW
The Daikin FDYA200A-DY Premium Inverter Ducted System is a high-capacity reverse-cycle ducted air conditioner designed for larger homes and commercial applications requiring powerful, efficient and discreet climate control.

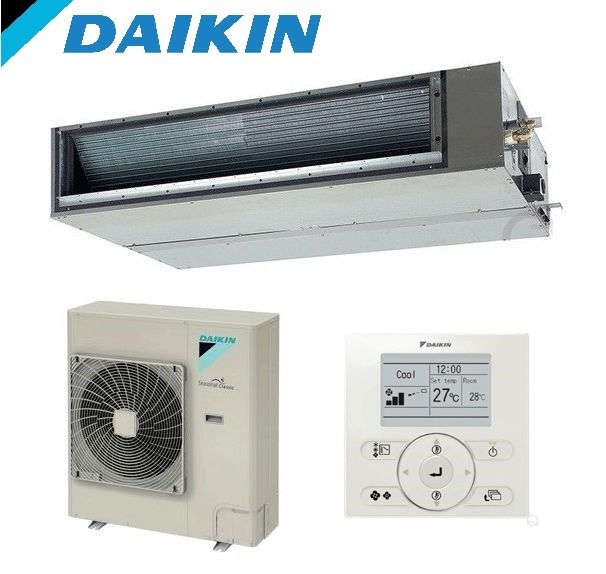

Featuring Daikin's latest R32 Premium Inverter technology, the FDYA200A combines a high-capacity Australian-made ducted indoor unit with a compact side-discharge outdoor unit. The system delivers 20.0kW rated cooling and 22.4kW rated heating, with inverter control allowing capacity to vary according to the actual load of the building.
The indoor unit provides up to 1,300 L/s airflow and incorporates large rectangular supply and return air flanges, making it well suited to engineered ductwork systems and larger zoned installations.
The outdoor unit is designed for demanding Australian conditions, with cooling operation available in ambient temperatures up to 52°C. Its compact 320mm-deep side-discharge cabinet provides additional installation flexibility compared with traditional large-capacity top-discharge condensers.
Key Features
20.0kW rated cooling capacity
22.4kW rated heating capacity
Premium Inverter reverse-cycle system
R32 refrigerant
Three-phase power supply
Up to 1,300 L/s indoor airflow
Australian-made ducted indoor unit
Compact side-discharge outdoor unit
Cooling operation up to 52°C ambient
Large rectangular supply and return air connections
Suitable for larger residential and commercial ducted applications
Compatible with Daikin ducted controllers and zoning solutions
Technical Specifications
| Specification | FDYA200A-DY |
|---|
| Indoor Model | FDYA200AV1 |
| Outdoor Model | RZAS200DY1 |
| Cooling Capacity | 20.0 kW |
| Cooling Capacity Range | 10.0–22.4 kW |
| Heating Capacity | 22.4 kW |
| Heating Capacity Range | 11.2–25.0 kW |
| Rated Cooling Input | 5.94 kW |
| Rated Heating Input | 5.80 kW |
| Air Flow | 1,200 L/s nominal / 1,300 L/s max |
| Indoor Dimensions | 470 × 1400 × 997 mm (H × W × D) |
| Indoor Weight | 77 kg |
| Outdoor Dimensions | 1430 × 940 × 320 mm (H × W × D) |
| Outdoor Weight | 118 kg |
| Supply Air Flange | 1118 × 350 mm (W × H) |
| Return Air Flange | 1118 × 393 mm (W × H) |
| Liquid Pipe | 9.5 mm – brazed |
| Gas Pipe | 19.1 mm – brazed |
| Drain | BSP 3/4" internal thread |
| Refrigerant | R32 |
| Power Supply | 380–415V, 3 Phase, 50Hz |
| Outdoor Cooling Range | -5°C to 52°C DB |
| Outdoor Heating Range | -20°C to 15.5°C WB |
Application
The FDYA200A-DY is particularly suited to large homes, offices, retail spaces and light-commercial applications where high airflow and multiple conditioned zones are required. When combined with a properly designed duct system and zoning controls, the Premium Inverter platform provides flexible whole-building comfort while keeping the indoor equipment concealed within the ceiling space.
