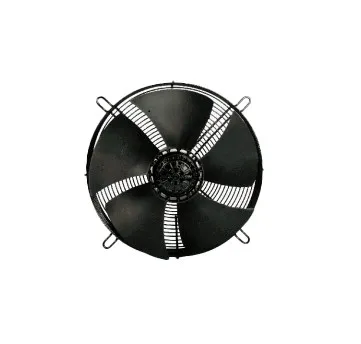

WG Motor 500-4D-550-S-G-415 550mm Three Phase Basket Cage Axial Fan
The WG Motor 500-4D-550-S-G-415 is a 550mm basket cage axial fan assembly suited to commercial refrigeration, HVAC and cooling equipment applications. Based on WG Motor’s matching YWF4D-550S-137/50-* platform, this fan is designed for high-volume axial airflow across condensers, evaporators and other heat exchange equipment.
With a three phase 380–480V AC motor, 4-pole speed profile, IP54 protection, Class F insulation and airflow up to 8585m³/h at 60Hz, it is a strong option for refrigeration service replacement and OEM-style fan applications where the physical fit and electrical specification match the equipment.
Key Features
550mm basket cage axial fan assembly
WG Motor YWF4D-550S-137/50 platform reference
Three phase AC operation
380–480V supply voltage range
Suitable for 415V three phase systems where correctly matched
50/60Hz frequency compatibility
4-pole motor design
1400 RPM at 50Hz / 1600 RPM at 60Hz
Airflow up to 7465m³/h at 50Hz and 8585m³/h at 60Hz
IP54 degree of protection
Class F insulation
SPCC impeller material
Die-cast aluminium rotor
Suction or blowing airflow direction
Suitable for refrigeration and HVAC equipment
CCC, CE and UL approvals listed by WG Motor for the 50/60Hz version
Specifications
| Specification | Details |
|---|
| Product Code | 500-4D-550-S-G-415 |
| WG Motor Reference Model | YWF4D-550S-137/50-* |
| Brand | WG Motor |
| Product Type | Basket Cage Axial Fan / External Rotor Axial Fan |
| Fan Size | 550mm |
| Voltage Type | 3~ AC |
| Supply Voltage | 380–480V |
| Nominal Site Voltage | 415V three phase, where correctly matched |
| Frequency | 50/60Hz |
| Motor Pole Type | 4 Pole |
| Power Input | 350W at 50Hz / 515W at 60Hz |
| Current | 0.92A at 50Hz / 0.99A at 60Hz |
| Speed | 1400 RPM at 50Hz / 1600 RPM at 60Hz |
| Airflow | 7465m³/h at 50Hz / 8585m³/h at 60Hz |
| Minimum Ambient Temperature | -30°C |
| Maximum Ambient Temperature | +60°C |
| Impeller Material | SPCC |
| Rotor Material | Die-cast aluminium |
| Airflow Direction | Suction / Blowing |
| Degree of Protection | IP54 |
| Insulation Class | Class F |
| Storage Temperature | -40°C to +80°C |
| Approvals Listed | CCC / CE / UL |
| Airflow Curve Reference | H / I |
Applications
Commercial refrigeration equipment
Supermarket freezers
Cold rooms and cold stores
Ice machines
Chillers
Condensing units
Dehumidifiers
Evaporators
Side-wall fans
Fire-fighting fan applications where correctly specified
Central air-conditioning fan applications
Refrigeration service replacement where matching specifications are required
Safety & Documentation
Install only by licensed electrical, refrigeration or HVAC technicians. Confirm voltage, phase, frequency, fan diameter, basket guard size, motor depth, mounting pattern, airflow direction, rotation direction and equipment manufacturer specifications before installation.
Ensure the fan is isolated before servicing and confirm the final model selection against the equipment nameplate or WG Motor technical documentation.
The WG Motor 500-4D-550-S-G-415 is a high-airflow 550mm three phase basket cage axial fan for refrigeration and HVAC equipment requiring reliable 4-pole axial fan performance on compatible 415V three phase systems.
