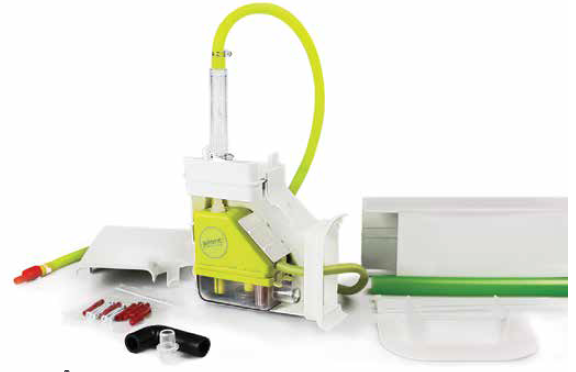

Aspen Silent+ Mini Lime Condensate Pump – FP3312
Elbow-mounted condensate pump for high-wall split systems. Features vibration damping, a removable reservoir and LED operating indication for commissioning and servicing.
| Specification | Details |
|---|
| Product reference | FP3312 |
| Specification basis | Earlier FP3312/3 generation |
| Maximum flow | 12 L/h at zero head |
| Maximum recommended head | 10 m |
| Flow at 10 m head | 6 L/h |
| Power supply | 230 V AC, 50/60 Hz |
| Sound level | 20 dB(A) at 1 m, under stated OEM conditions |
| Maximum water temperature | 40°C |
| Discharge tubing | 6 mm internal diameter |
| Protection | IP24 |
| Safety contacts | 5 A normally closed / normally open |
Version note: Confirm the suffix on stock. The newer FP3312/5 has different flow, head and noise ratings.
Manufacturer source: Aspen Silent+ Mini Lime FP3312/3 technical datasheet
