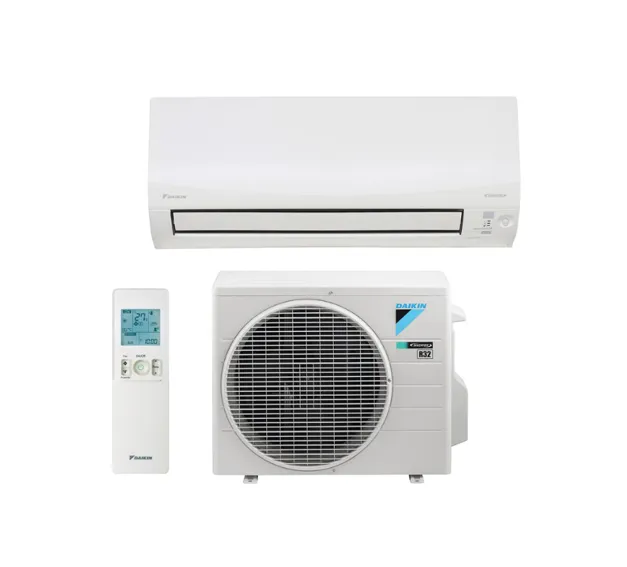

The Daikin FTXM35Y Alira X is a premium 3.5kW reverse-cycle split-system air conditioner designed for bedrooms, offices and medium-sized living areas. It combines efficient inverter heating and cooling with quiet operation, Daikin Streamer air-cleaning technology and built-in Wi-Fi control.
The complete system includes the FTXM35YVMA indoor unit and RXM35YVMA outdoor unit.
Features
3.5kW rated cooling capacity
3.7kW rated heating capacity
Energy-efficient inverter operation
Built-in Wi-Fi—no additional adaptor required
Daikin Mobile Controller compatibility
Streamer air-cleaning technology
Enzyme Blue deodorising filter
Washable particulate prefilter
Mould-Proof internal drying operation
2-Area Intelligent Eye occupancy sensor
Comfort Airflow for reduced direct draughts
Coanda-style ceiling airflow
Humidity sensor for improved dry-mode control
Quiet operation from 19dBA
Five fan speeds plus quiet and automatic modes
Powerful, Econo and Outdoor Unit Quiet modes
Weekly and 24-hour timers
Backlit wireless remote controller
Temperature adjustment in 0.5°C increments
R32 refrigerant
Sensitive Choice approved
Five-year domestic parts-and-labour warranty, subject to Daikin’s conditions
Specifications
| Specification | Details |
|---|
| Brand | Daikin |
| Series | Alira X |
| System model | FTXM35Y |
| Indoor unit | FTXM35YVMA |
| Outdoor unit | RXM35YVMA |
| System type | Reverse-cycle inverter split system |
| Rated cooling capacity | 3.5kW |
| Cooling capacity range | 1.0–4.2kW |
| Rated heating capacity | 3.7kW |
| Heating capacity range | 1.0–5.5kW |
| Rated cooling input | 0.80kW |
| Rated heating input | 0.76kW |
| EER | 4.38 |
| COP | 4.89 |
| Power supply | 220–240V, single-phase, 50Hz |
| Refrigerant | R32 |
| Indoor airflow—cooling, high | 225L/s |
| Indoor airflow—heating, high | 225L/s |
| Indoor fan speeds | Five steps, quiet and automatic |
| Indoor sound—cooling | 42/19dBA high/quiet |
| Indoor sound—heating | 42/20dBA high/quiet |
| Outdoor sound—cooling | 49/44dBA rated/quiet |
| Outdoor sound—heating | 49/45dBA rated/quiet |
| Outdoor sound power—cooling | 61dBA |
| Outdoor sound power—heating | 61dBA |
| Indoor dimensions | 299 × 838 × 275mm |
| Outdoor dimensions | 550 × 675 × 284mm |
| Indoor weight | 12kg |
| Outdoor weight | 30kg |
| Compressor | Hermetically sealed swing compressor |
| Maximum pipe length | 20m |
| Maximum level difference | 15m |
| Liquid pipe size | 6.4mm |
| Gas pipe size | 9.5mm |
| Cooling operating range | −10°C to 46°C |
| Heating operating range | −15°C to 18°C wet bulb |
| Wi-Fi | Built into indoor unit |
| Indoor colour | White |
Zoned Energy Ratings
| Climate zone | Cooling | Heating |
|---|
| Hot | 5 stars | 3.5 stars |
| Average | 4.5 stars | 3.5 stars |
| Cold | 5 stars | 3 stars |
Air-Quality Technology
The FTXM35Y incorporates multiple air-quality technologies:
A washable prefilter captures larger airborne particles.
The Enzyme Blue deodorising filter helps reduce unpleasant odours.
Streamer technology uses high-speed electrons to assist with the decomposition of trapped allergens, mould, odours and other pollutants.
Mould-Proof operation dries the inside of the indoor unit after cooling or dry operation, helping reduce mould and odour development.
Included Components
FTXM35YVMA wall-mounted indoor unit
RXM35YVMA outdoor unit
Backlit wireless remote controller
Internal wireless LAN adaptor
Important Information
The Wi-Fi adaptor is factory fitted; a separate BRP-series adaptor is not required.
Smartphone control requires a compatible wireless network and the supported Daikin application.
Professional installation by a suitably licensed air-conditioning technician is required.
Actual room suitability depends on insulation, glazing, ceiling height, orientation and local climate.
Sources: Daikin Australia Alira X product page, Daikin Alira X OEM brochure and FTXM35YVMA/RXM35YVMA technical specifications.
