The Daikin FTXM46W Alira X is a premium 4.6kW reverse-cycle split-system air conditioner designed for larger bedrooms, offices and medium-sized living areas. It combines efficient inverter heating and cooling with Streamer air-cleaning technology, advanced filtration and built-in Wi-Fi control.

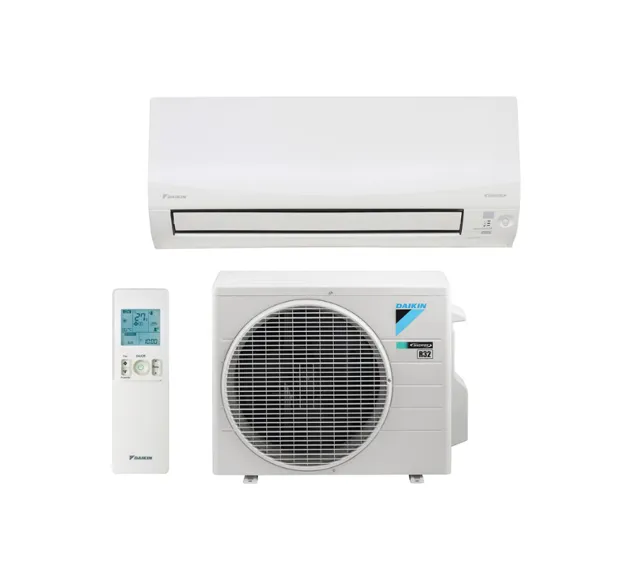

The complete system includes the FTXM46WVMA indoor unit and RXM46WVMA outdoor unit.
Features
4.6kW rated cooling capacity
4.7kW rated heating capacity
Energy-efficient inverter operation
Built-in Wi-Fi—no additional adaptor required
Daikin Mobile Controller compatibility
Streamer air-cleaning technology
Enzyme Blue deodorising filter
Three-layer air-purification system
Mould-Proof internal drying operation
2-Area Intelligent Eye occupancy sensor
Coanda-style ceiling airflow
Comfort Airflow for reduced direct draughts
Humidity sensor for improved dry-mode control
Five fan speeds plus quiet and automatic modes
Powerful, Econo and Outdoor Unit Quiet modes
Weekly and 24-hour timers
Backlit wireless remote controller
Temperature adjustment in 0.5°C increments
R32 refrigerant
Sensitive Choice approved
Five-year domestic parts-and-labour warranty, subject to Daikin’s conditions
Specifications
| Specification | Details |
|---|
| Brand | Daikin |
| Series | Alira X |
| System model | FTXM46W |
| Indoor unit | FTXM46WVMA |
| Outdoor unit | RXM46WVMA |
| System type | Reverse-cycle inverter split system |
| Rated cooling capacity | 4.6kW |
| Cooling capacity range | 0.9–5.5kW |
| Rated heating capacity | 4.7kW |
| Heating capacity range | 1.0–6.7kW |
| Rated cooling input | 1.17kW |
| Rated heating input | 1.04kW |
| EER | 3.95 |
| COP | 4.52 |
| Power supply | 220–240V, single-phase, 50Hz |
| Refrigerant | R32 |
| Indoor airflow—cooling, high | 253L/s |
| Indoor airflow—heating, high | 250L/s |
| Indoor fan speeds | Five steps, quiet and automatic |
| Indoor sound—cooling | 43/26dBA high/quiet |
| Indoor sound—heating | 43/26dBA high/quiet |
| Outdoor sound—cooling | 47/44dBA rated/quiet |
| Outdoor sound—heating | 48/45dBA rated/quiet |
| Outdoor sound power—cooling | 59dBA |
| Outdoor sound power—heating | 60dBA |
| Indoor dimensions | 299 × 920 × 275mm |
| Outdoor dimensions | 695 × 930 × 350mm |
| Indoor weight | 13kg |
| Outdoor weight | 51kg |
| Compressor | Hermetically sealed swing compressor |
| Maximum pipe length | 30m |
| Maximum level difference | 20m |
| Liquid pipe size | 6.4mm |
| Gas pipe size | 12.7mm |
| Cooling operating range | −10°C to 46°C |
| Heating operating range | −15°C to 18°C wet bulb |
| Wi-Fi | Built into indoor unit |
| Indoor colour | White |
Zoned Energy Ratings
| Climate zone | Cooling | Heating |
|---|
| Hot | 4.5 stars | 4 stars |
| Average | 4 stars | 3.5 stars |
| Cold | 4.5 stars | 3 stars |
Air-Quality Technology
The FTXM46W incorporates three complementary air-quality technologies:
A washable prefilter captures larger airborne particles.
The Enzyme Blue deodorising filter helps reduce unpleasant odours.
Streamer technology assists with the decomposition of trapped allergens, mould, pollen, odours and other pollutants.
Mould-Proof operation dries the interior of the indoor unit after cooling or dry operation, helping reduce conditions that can contribute to mould and odour development.
Included Components
FTXM46WVMA wall-mounted indoor unit
RXM46WVMA outdoor unit
Backlit wireless remote controller
Internal wireless LAN adaptor
Important Information
The Wi-Fi adaptor is factory fitted; a separate BRP-series adaptor is not required.
Smartphone control requires a compatible wireless network and the supported Daikin application.
Professional installation by a suitably licensed air-conditioning technician is required.
Actual room suitability depends on insulation, glazing, ceiling height, orientation and local climate.
Sources: Daikin Australia Alira X information, Daikin OEM FTXM46WVMA technical data and Daikin Alira X FTXM46W specification brochure.
