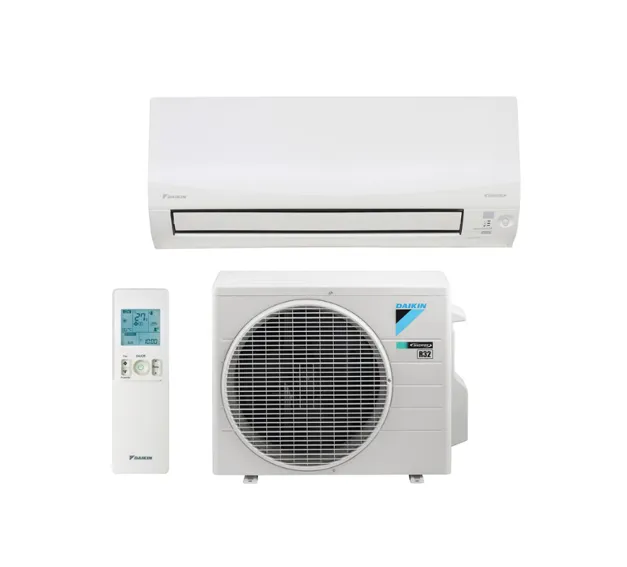

The Daikin FTXM71W Alira X is a powerful 7.1kW reverse-cycle split-system air conditioner designed for large living rooms, open-plan areas and offices. It combines high-capacity inverter heating and cooling with long-reach airflow, Streamer air-cleaning technology and built-in Wi-Fi control.
The complete system includes the FTXM71WVMA indoor unit and RXM71WVMA outdoor unit.
Features
7.1kW rated cooling capacity
8.0kW rated heating capacity
Energy-efficient inverter operation
Built-in Wi-Fi—no additional adaptor required
Daikin Mobile Controller compatibility
Streamer air-cleaning technology
Enzyme Blue deodorising filter
Three-layer air-purification system
Mould-Proof internal drying operation
Intelligent Eye occupancy sensor
Redesigned dual discharge louvres
Coanda airflow with extended air throw
Humidity sensor for improved dry-mode control
Five fan speeds plus quiet and automatic modes
Powerful, Econo and Outdoor Unit Quiet modes
Weekly and 24-hour timers
Backlit wireless remote controller
Temperature adjustment in 0.5°C increments
R32 refrigerant
Sensitive Choice approved
Five-year domestic parts-and-labour warranty, subject to Daikin’s conditions
Specifications
| Specification | Details |
|---|
| Brand | Daikin |
| Series | Alira X |
| System model | FTXM71W |
| Indoor unit | FTXM71WVMA |
| Outdoor unit | RXM71WVMA |
| System type | Reverse-cycle inverter split system |
| Rated cooling capacity | 7.1kW |
| Cooling capacity range | 2.0–8.9kW |
| Rated heating capacity | 8.0kW |
| Heating capacity range | 2.0–10.8kW |
| Rated cooling input | 2.00kW |
| Rated heating input | 1.96kW |
| EER | 3.55 |
| COP | 4.08 |
| Power supply | 220–240V, single-phase, 50Hz |
| Refrigerant | R32 |
| Indoor airflow—cooling, high | 410L/s |
| Indoor airflow—heating, high | 410L/s |
| Indoor fan speeds | Five steps, quiet and automatic |
| Indoor sound—cooling | 49/30dBA high/quiet |
| Indoor sound—heating | 49/30dBA high/quiet |
| Outdoor sound—cooling | 53/49dBA rated/quiet |
| Outdoor sound—heating | 54/49dBA rated/quiet |
| Outdoor sound power—cooling | 65dBA |
| Outdoor sound power—heating | 66dBA |
| Indoor dimensions | 299 × 1,100 × 275mm |
| Outdoor dimensions | 695 × 930 × 350mm |
| Indoor weight | 15kg |
| Outdoor weight | 60kg |
| Compressor | Hermetically sealed swing compressor |
| Maximum pipe length | 30m |
| Maximum level difference | 20m |
| Liquid pipe size | 6.4mm |
| Gas pipe size | 15.9mm |
| Cooling operating range | −10°C to 46°C |
| Heating operating range | −15°C to 18°C wet bulb |
| Wi-Fi | Built into indoor unit |
| Indoor colour | White |
Zoned Energy Ratings
| Climate zone | Cooling | Heating |
|---|
| Hot | 4 stars | 3.5 stars |
| Average | 3 stars | 3 stars |
| Cold | 3.5 stars | 2.5 stars |
Air-Quality Technology
The FTXM71W incorporates three complementary air-quality technologies:
A washable prefilter captures larger airborne particles.
The Enzyme Blue deodorising filter helps reduce unpleasant odours.
Streamer technology assists with the decomposition of trapped allergens, mould, pollen, odours and other pollutants.
Mould-Proof operation dries the interior of the indoor unit after cooling or dry operation, helping reduce conditions that can contribute to mould and odour development.
Included Components
FTXM71WVMA wall-mounted indoor unit
RXM71WVMA outdoor unit
Backlit wireless remote controller
Internal wireless LAN adaptor
Important Information
The Wi-Fi adaptor is factory fitted; a separate BRP-series adaptor is not required.
The 71-class model uses the standard Intelligent Eye occupancy sensor rather than the 2-Area Intelligent Eye fitted to the 20–46 class models.
Smartphone control requires a compatible wireless network and the supported Daikin application.
Professional installation by a suitably licensed air-conditioning technician is required.
Actual room suitability depends on insulation, glazing, ceiling height, orientation and local climate.
Sources: Daikin Australia Alira X product information, Daikin Australia OEM operation-manual listing and FTXM71WVMA/RXM71WVMA technical specifications.
