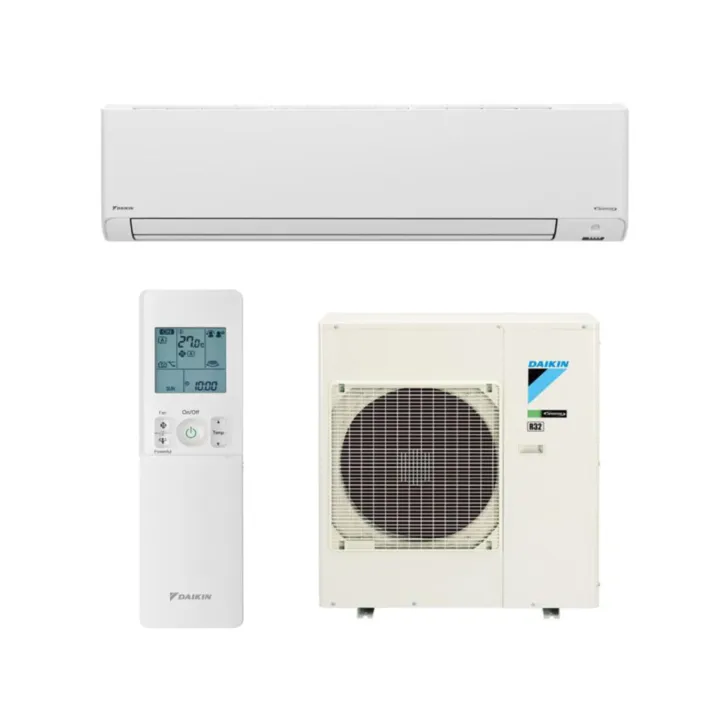

The Daikin FTXM85W XL Premium is a high-capacity reverse-cycle wall-mounted split system designed for large open-plan living areas, offices and light-commercial spaces. It delivers 8.5kW rated cooling and 9.0kW rated heating, with maximum outputs reaching 10.5kW cooling and 11.6kW heating.
The FTXM85W combines powerful airflow with Daikin’s Streamer air-cleaning technology, an enzyme-blue deodorising filter and Mould Proof operation. Built-in Wi-Fi allows convenient control through Daikin’s mobile application without requiring an additional adaptor.
Features
8.5kW rated cooling capacity
9.0kW rated heating capacity
Maximum cooling output up to 10.5kW
Maximum heating output up to 11.6kW
Energy-efficient DC inverter operation
R32 refrigerant
Built-in Wi-Fi control
Flash Streamer air-cleaning technology
Enzyme-blue deodorising air-purification filter
Mould Proof operation
Intelligent Eye occupancy sensor
Built-in humidity sensor
3-D airflow with vertical and horizontal auto-swing
Power-airflow dual flaps
Comfort Airflow mode
Sensitive Choice approved
Five fan speeds plus automatic and quiet modes
Powerful mode for rapid heating or cooling
Econo mode to limit maximum power consumption
Outdoor Unit Quiet mode
Improved Program Dry function
Backlit wireless remote controller
Precision temperature adjustment in 0.5°C increments
Weekly and 24-hour ON/OFF timers
Auto restart following a power interruption
Self-diagnostic fault display
Daikin five-year residential parts and labour warranty, subject to warranty conditions
Specifications
| Specification | Details |
|---|
| Brand | Daikin |
| Series | XL Premium |
| System Model | FTXM85W |
| System Type | Reverse-cycle inverter split system |
| Indoor Model | FTXM85WVMA |
| Indoor Dimensions | 329 × 1,240 × 278mm |
| Indoor Weight | 19kg |
| Outdoor Model | RXM85WVMA |
| Outdoor Dimensions | 990 × 940 × 320mm |
| Outdoor Weight | 77kg |
| Refrigerant | R32 |
| Cooling Capacity | 2.0–8.5–10.5kW |
| Heating Capacity | 1.9–9.0–11.6kW |
| Rated Cooling Input | 2.35kW |
| Rated Heating Input | 2.66kW |
| EER | 3.62 |
| COP | 3.38 |
| Cooling Airflow | 380L/s on high |
| Heating Airflow | 403L/s on high |
| Indoor Fan Speeds | 5 steps, quiet and automatic |
| Indoor Sound Level – Cooling | 49/35dBA, high/quiet |
| Indoor Sound Level – Heating | 49/33dBA, high/quiet |
| Outdoor Sound Level – Cooling | 54/51dBA, rated/quiet |
| Outdoor Sound Level – Heating | 55/51dBA, rated/quiet |
| Power Supply | 220–240V, single-phase, 50Hz |
| Compressor | Hermetically sealed swing compressor |
| Pipe Sizes | 6.35mm liquid / 15.88mm gas |
| Drain Connection | 16mm |
| Maximum Pipe Length | 30m |
| Maximum Level Difference | 20m |
| Cooling Operating Range | −10°C to 46°C DB |
| Heating Operating Range | −15°C to 18°C WB |
| Indoor Colour | White |
| Controller | Backlit wireless remote controller |
| Wi-Fi Control | Built in |
Zoned Energy Ratings
| Climate Zone | Cooling | Heating |
|---|
| Hot | 3.5 stars | 2.5 stars |
| Average | 3.0 stars | 2.0 stars |
| Cold | 3.5 stars | 2.0 stars |
Included Components
FTXM85WVMA wall-mounted indoor unit
RXM85WVMA outdoor unit
Backlit wireless remote controller
Built-in wireless LAN adaptor
Important Information
The FTXM85W is the XL Premium alternative to the standard FTXV80W XL model.
No additional Wi-Fi adaptor is required.
This model uses a 15.88mm (5/8-inch) gas connection.
Professional installation by suitably licensed refrigeration and electrical contractors is required.
Actual capacity, sound levels and energy consumption vary with installation and operating conditions.
Sources: Daikin BIM Library FTXM85WVMA specifications, Daikin FTXM85W/RXM85W technical specifications and Daikin FTXM85WVMA operating documentation.
