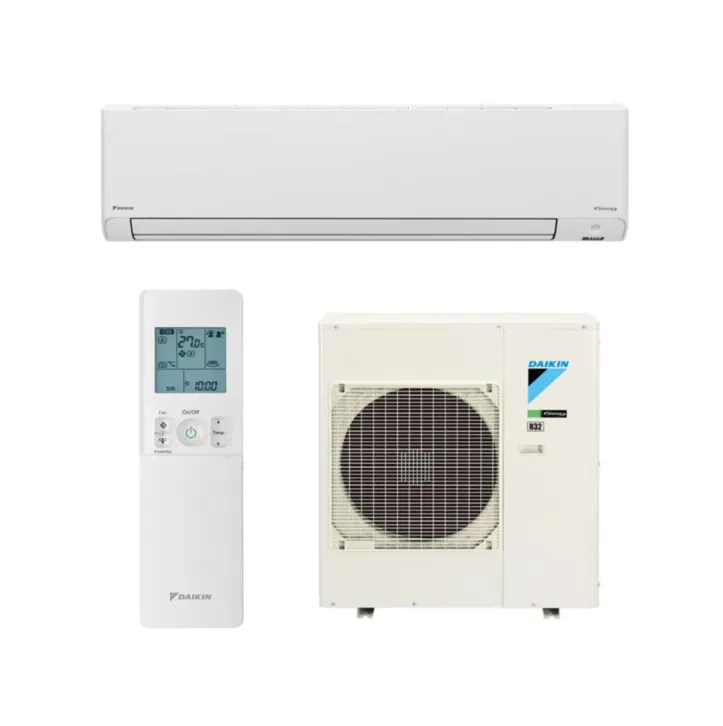

The Daikin FTXV80W XL Series is a high-capacity reverse-cycle wall-mounted split system designed for large living rooms, open-plan areas and commercial offices. It delivers 8.0kW rated cooling and 9.0kW rated heating, with maximum outputs reaching 10.5kW cooling and 11.6kW heating.
Designed for powerful air distribution, the FTXV80W combines 3-D airflow, dual airflow flaps and an Intelligent Eye occupancy sensor. It also features an enzyme-blue air-purification filter, mould-proof operation and a humidity sensor for improved dehumidification.
Features
8.0kW rated cooling capacity
9.0kW rated heating capacity
Maximum cooling output up to 10.5kW
Maximum heating output up to 11.6kW
Energy-efficient DC inverter operation
R32 refrigerant
Intelligent Eye occupancy sensor
3-D airflow with vertical and horizontal auto-swing
Power-airflow dual flaps
Coanda-style airflow with throws up to 10 metres
Built-in humidity sensor
Improved Program Dry function
Mould Proof operation
Enzyme-blue deodorising air-purification filter
Sensitive Choice approved
Five fan speeds plus automatic and quiet modes
Powerful mode for rapid heating or cooling
Econo mode to limit maximum power consumption
Comfort Airflow mode
Outdoor Unit Quiet mode
Backlit wireless remote controller
Precision temperature adjustment in 0.5°C increments
Weekly and 24-hour ON/OFF timers
Auto restart following a power interruption
Self-diagnostic fault display
Demand Response capable
Optional internally mounted Wi-Fi control
Daikin five-year residential parts and labour warranty, subject to warranty conditions
Specifications
| Specification | Details |
|---|
| Brand | Daikin |
| Series | XL Series |
| System Model | FTXV80W |
| System Type | Reverse-cycle inverter split system |
| Indoor Model | FTXV80WVMA |
| Indoor Dimensions | 329 × 1,240 × 278mm |
| Indoor Weight | 19kg |
| Outdoor Model | RXV80WVMA |
| Outdoor Dimensions | 990 × 940 × 320mm |
| Outdoor Weight | 77kg |
| Refrigerant | R32 |
| Cooling Capacity | 2.0–8.0–10.5kW |
| Heating Capacity | 1.9–9.0–11.6kW |
| Rated Cooling Input | 2.17kW |
| Rated Heating Input | 2.75kW |
| EER | 3.69 |
| COP | 3.27 |
| Cooling Airflow | 410L/s on high |
| Heating Airflow | 403L/s on high |
| Indoor Fan Speeds | 5 steps, quiet and automatic |
| Indoor Sound Level – Cooling | 51/37dBA, high/quiet |
| Indoor Sound Level – Heating | 51/35dBA, high/quiet |
| Outdoor Sound Level – Cooling | 54/51dBA, rated/quiet |
| Outdoor Sound Level – Heating | 55/51dBA, rated/quiet |
| Power Supply | 220–240V, single-phase, 50Hz |
| Compressor | Hermetically sealed swing compressor |
| Pipe Sizes | 6.35mm liquid / 15.88mm gas |
| Drain Connection | 16mm |
| Maximum Pipe Length | 30m |
| Maximum Level Difference | 20m |
| Cooling Operating Range | −10°C to 46°C DB |
| Heating Operating Range | −15°C to 18°C WB |
| Indoor Colour | Ivory White |
| Controller | Backlit wireless remote controller |
| Wi-Fi Control | Optional |
Zoned Energy Ratings
| Climate Zone | Cooling | Heating |
|---|
| Hot | 3.5 stars | 2.5 stars |
| Average | 3.0 stars | 2.0 stars |
| Cold | 3.5 stars | 1.5 stars |
Included Components
Optional Wi-Fi Control
The correct internally mounted Wi-Fi adaptor is:
No separate BRP067A42 or BRP980B42 interface board is required for the Wi-Fi installation.
Important Information
The FTXV80W belongs to Daikin’s XL Series, not the standard Cora range.
Professional installation by suitably licensed refrigeration and electrical contractors is required.
This model uses a 15.88mm (5/8-inch) gas connection.
Actual capacity, sound levels and energy consumption vary with installation and operating conditions.
Sources: Daikin FTXV-WVMA XL Series OEM technical resource and Daikin Australia operation-manual library.
