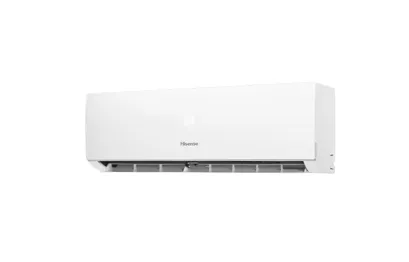

The Hisense HAWJ7KR-I is a compact 2.1kW high-wall indoor unit designed for use with compatible Hisense M Series multi-split outdoor systems. Its discreet design, quiet operation and smart control features make it ideal for bedrooms, studies, apartments and other smaller spaces.
The included R2-01 wireless remote controller provides convenient access to temperature, fan-speed, operating-mode and timer settings. ConnectLife app compatibility also allows supported Wi-Fi and smart-home voice control.
Key Features
2.1kW nominal cooling capacity
2.5kW nominal heating capacity
R2-01 wireless remote controller included
ConnectLife Wi-Fi app control
Compatible smart-home voice control
Silver Ion antibacterial filter
Quiet operation from 25dB(A)
Four-direction automatic airflow
Long-distance airflow
I Feel temperature control
Fast Cooling mode
Eco energy-saving mode
Smart and Quiet operating modes
24-hour timer
Display dimmer function
Optional wired wall controller
R32 refrigerant
Compatible with Hisense M Series multi-split outdoor units
Specifications
| Specification | Details |
|---|
| Model | HAWJ7KR-I |
| Unit Type | Multi-split high-wall indoor unit |
| Cooling Capacity | 2.1kW |
| Heating Capacity | 2.5kW |
| Power Supply | 220–240V, 1 Phase, 50/60Hz |
| Indoor Power Input | 22W |
| Rated Current | 0.3A |
| Maximum Airflow | Approximately 619m³/h |
| Sound Pressure – Maximum/Minimum | 39 / 25dB(A) |
| Sound Power Level | 59dB(A) |
| Dimensions – W × H × D | 815 × 270 × 212mm |
| Net Weight | 7.7kg |
| Liquid Pipe | 6.35mm (1/4") |
| Gas Pipe | 9.52mm (3/8") |
| Drain Connection | 30mm |
| Refrigerant | R32 |
Controls
| Model | Description |
|---|
| R2-01 | Included wireless remote with timer, fan-speed, Super, Eco, Smart, Quiet, airflow and display controls |
| YXE-C01U1(E) | Optional backlit wired controller with weekly timer, five operating modes, fault-code display and filter reminder |
| ConnectLife App | Wi-Fi control of temperature, operating modes and other supported functions |
This is an indoor unit only and must be connected to a suitably sized Hisense M Series multi-split outdoor unit.
Specifications are based on the Hisense Australia OEM Multi-Head Split brochure.
Wi-Fi Control
Remotely control the air conditioner through the mobile phone APP and a Wi-Fi connection.
Voice Control
When the air conditioner is connected to Wi-Fi, you can control the air conditioner by voice via Amazon Alexa or Google Home.
Healthy Filter
The Air Conditioning unit features a silver ion filter, which is an antibacterial device that keeps the air free from bacteria and impurities.
Evaporator Self-clean
Through a frosting and defrosting cycle, you can sustain a clean air conditioner.
R32 Refrigerant
R32 refrigerant is a hydrofluorocarbon (HFC) with a low global warming potential (GWP) and is considered a more environmentally friendly alternative to older refrigerants.
