Aspen Max Hi-Flow Condensate Tank Pump – FP3349
High-flow condensate pump for ducted, cassette and floor-standing air-conditioning systems. The accessible tank, built-in spirit level and plug-and-play power connection simplify installation and servicing.
| Specification | Details |
|---|
| Part number | FP3349 |

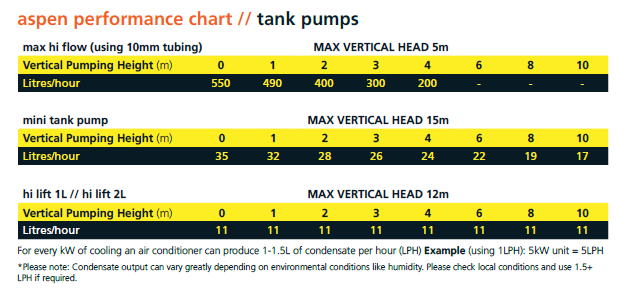

| Maximum flow | 550 L/h at zero head, using 10 mm outlet |
| Maximum recommended head | 5 m |
| Flow at 5 m head | 55 L/h |
| Tank capacity | 1.7 L |
| Power supply | 230 V AC, 50 Hz |
| Sound level | 44 dB(A) at 1 m |
| Maximum water temperature | 40°C |
| Connections | Four 21–27 mm inlets; 6 or 10 mm outlet |
| Dimensions | 285 × 144 × 134 mm |
| Weight | 1.65 kg |
| Protection | IP24; 3 A normally closed safety switch |
Manufacturer source: Aspen Max Hi-Flow technical datasheet
