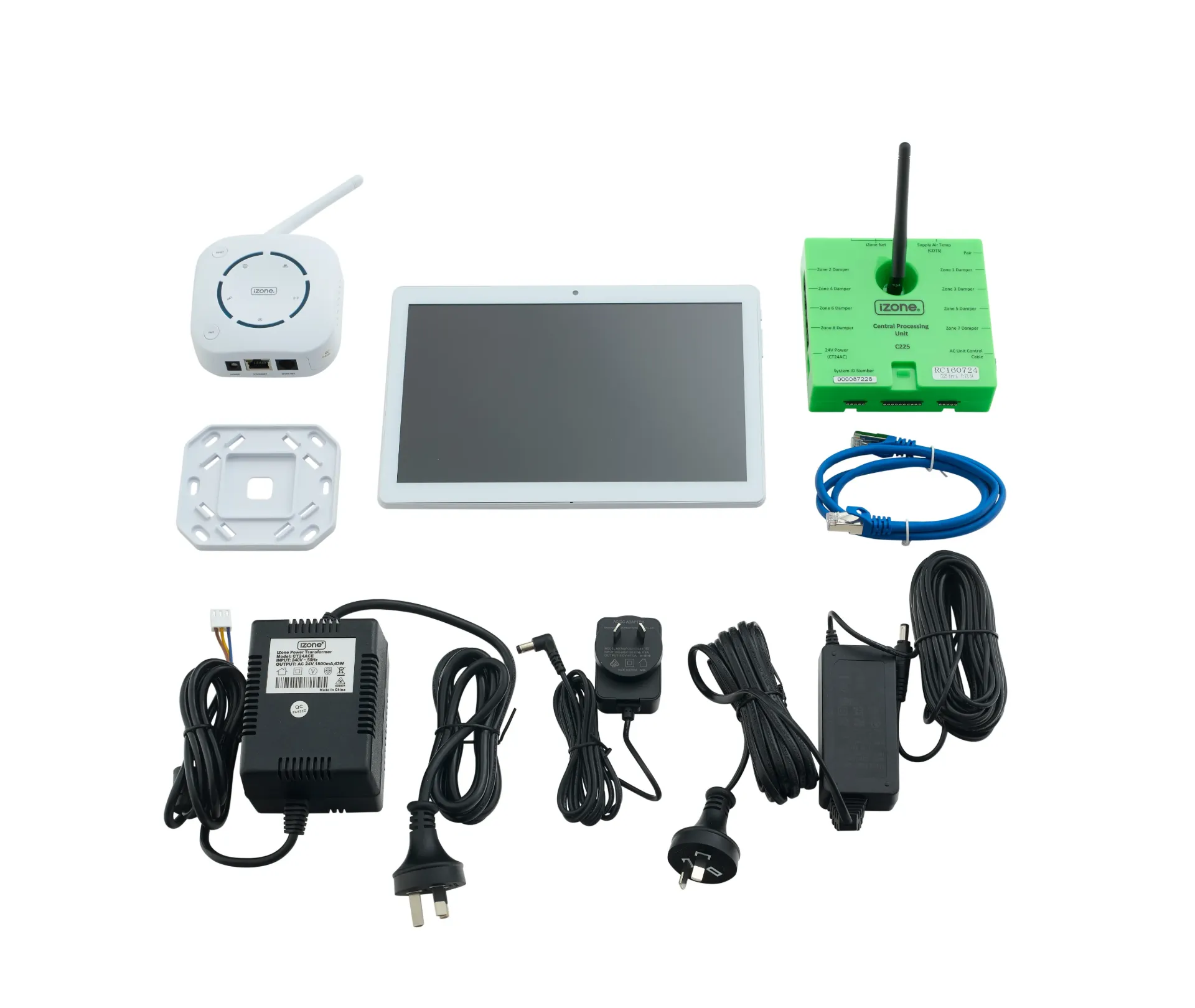

iZONE NOVA Wifi Screen + 8 ZONE CPU + SMART HUB (no AC unit module)

iZone C545K Nova DC 8-Zone Control Kit

The C545K is iZone’s premium Nova climate and zone-control kit, featuring a large 10-inch colour touchscreen, integrated Smart Hub and control for up to 8 air-conditioning zones.

The Nova controller connects to the Smart Hub via Wi-Fi and is independently powered through the included 12-metre DC power cable. This provides convenient touchscreen operation, mobile app access and remote system diagnostics.

Key Features

• Controls up to 8 zones

• Expandable to 14 zones using an optional CEXT zone extender

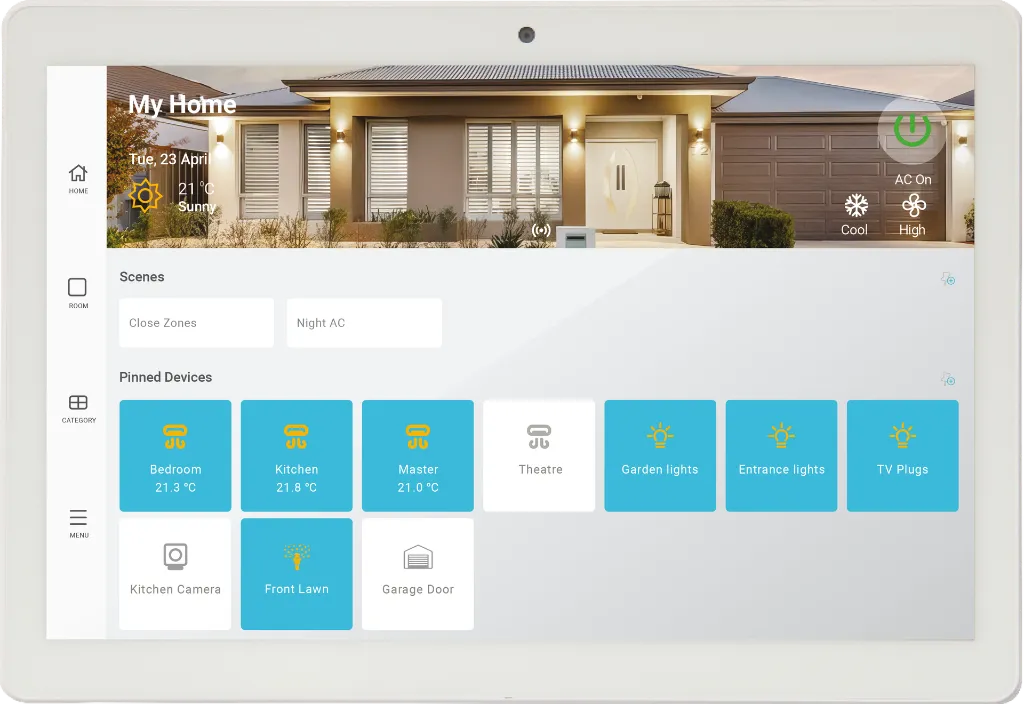

• 10-inch high-resolution capacitive touchscreen

• Air-conditioner on/off, mode, set-point and fan-speed control

• Zone open/close and airflow control

• Supports optional wireless or wired zone temperature sensors

• Individual room temperature control when compatible sensors are installed

• Built-in Wi-Fi connectivity through the included Smart Hub

• Local and remote control using the iZone mobile app

• Supports favourites, schedules and zone grouping

• Compatible with selected ducted, reverse-cycle, VRF and heating systems

• Remote diagnostics and supported over-the-air updates

Kit Contents

Specifications

• Native zone capacity: 8 zones

• Maximum expanded capacity: 14 zones

• CPU supply: 24VAC, 50Hz

• Screen supply: 12VDC, 1.5A

• Display: 10-inch colour capacitive touchscreen

• Screen resolution: 1920 × 1200

• Screen communications: Wi-Fi 802.11

• Package dimensions: 320 W × 140 H × 300 D mm

• Package weight: 3.12 kg

Important: The Nova touchscreen does not contain a built-in temperature, humidity or air-quality sensor. Individual room temperature control requires compatible iZone zone sensors. Zone motors, sensors and the air-conditioner-specific C325-series interface module are not included unless separately specified.
